NM01XXGH1605Z
Portable Directional (ceramic tube) Flaw Detector X-Ray System: Model: XXGH-1605Z Output voltage (KV): 60 - 160 Input (KW): 1.5 Focus size (mm): 0.8mm x 0.8mm Radiation angle: 40+5° Zone maximum penetration: 19mm (A3 steel) Weight Generator: 20 kg Controller: 11 kg Size Generator: Φ275×665mm Controller: 320×280×150mm SKU: XXGH-1605Z
Choose Quantity

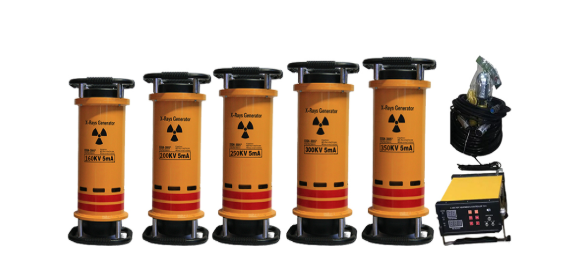

XXGH-1605Z Portable Directional X-Ray Flaw Detector System
Ceramic Tube Industrial Radiography System for Light-to-Medium Inspection Applications SKU: XXGH-1605ZOverview
The XXGH-1605Z Portable Directional X-Ray Flaw Detector System is a compact industrial radiography solution designed for non-destructive testing of welds, castings, fabricated components, and structural materials. Equipped with a ceramic X-ray tube, this system provides stable directional radiation output for controlled inspection workflows.
With an output voltage range of 60–160 kV and a 1.5 kW input rating, the XXGH-1605Z is well suited for light-to-medium radiographic inspection applications. Its 0.8 mm × 0.8 mm focus size supports clear imaging performance, while the 40° + 5° radiation angle provides focused beam coverage for targeted inspection areas.
Built for field and shop use, the system includes a portable generator and controller configuration, making it practical for industrial NDT teams requiring reliable X-ray inspection capability in a compact package.
What's Included
| Item | Details |
|---|---|
| X-Ray Generator | XXGH-1605Z directional ceramic tube generator |
| Controller | Portable control unit |
| Cables | Power and connection cables, if included |
| Documentation | User manual / operating instructions |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Generator Size | Ø10.8 × 26.2 in |
| Controller Size | 12.6 × 11.0 × 5.9 in |
| Generator Weight | 44.1 lb |
| Controller Weight | 24.3 lb |
| Total System Weight | 68.4 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Portable directional X-ray flaw detector |
| Model | XXGH-1605Z |
| Tube Type | Ceramic tube |
| Output Voltage | 60–160 kV |
| Input Power | 1.5 kW |
| Focus Size | 0.8 × 0.8 mm |
| Radiation Angle | 40° + 5° |
| Maximum Penetration | 19 mm A3 steel |
| Generator Weight | 20 kg |
| Controller Weight | 11 kg |
| Generator Size | Φ275 × 665 mm |
| Controller Size | 320 × 280 × 150 mm |
| Application | Industrial radiographic testing |
| SKU | XXGH-1605Z |
Performance Features
Directional X-Ray Output
Provides controlled beam coverage for targeted weld, casting, and component inspection.
Ceramic Tube Technology
Supports stable radiographic performance and reliable industrial operation.
Compact 160 kV System
Ideal for light-to-medium inspection tasks requiring portability and focused output.
Fine Focus Size
0.8 mm × 0.8 mm focus helps support clear radiographic image quality.
User-Friendly Design
- Portable generator and controller configuration
- Compact system size for field and shop use
- Directional beam design for controlled exposure setup
- Designed for efficient industrial radiography workflows
Built for Industrial Environments
- Durable construction for professional NDT applications
- Suitable for field inspection and workshop radiography
- Reliable performance for routine industrial testing
- Designed for weld, casting, and fabrication inspection workflows
Compatibility
Compatible with:
- Industrial X-ray film systems
- Digital radiography and computed radiography workflows
- Radiographic cassettes, IQIs, markers, and lead screens
- Weld, casting, and structural inspection setups
Ideal Applications
- Weld inspection and flaw detection
- Light-to-medium wall radiography
- Casting and fabrication inspection
- Pipeline and structural component testing
- Manufacturing quality control
- Industrial radiographic testing
- Field and shop NDT inspection workflows
About the Product
The XXGH-1605Z Portable Directional X-Ray Flaw Detector System is designed to provide reliable, compact, and controlled radiographic inspection capability for industrial NDT applications requiring directional X-ray output, stable ceramic tube performance, and practical field portability.
