NM01L136
Choose Quantity
Labino UVG3 2.0 Floodlight Kit Unit – UV-A LED Inspection Flashlight
SKU: NM01L136 | Manufacturer P/N: L136
A professional UV-A LED floodlight kit designed for fluorescent penetrant testing and magnetic particle inspection. The Labino UVG3 2.0 Floodlight combines approximately 4,000 µW/cm² UV-A intensity at 15 inches, a uniform 4.8-inch inspection beam, IP68 waterproof protection and up to four hours of battery operation.

| 4,000µW/cm² at 15 inches | IP68Waterproof protection | 4 hrsBattery runtime | 365 nmPeak UV-A wavelength |
The Labino UVG3 2.0 Floodlight Kit Unit is a compact and lightweight ultraviolet inspection solution engineered for demanding non-destructive testing applications. Its specially designed optical system provides a smooth and uniform UV-A beam, helping inspectors identify fluorescent indications during liquid penetrant testing (PT) and magnetic particle testing (MT).
With a nominal peak irradiance of approximately 4,000 µW/cm² at 15 inches (38.1 cm), the Floodlight provides a 12 cm (4.8-inch) diameter beam above 1,000 µW/cm². This controlled illumination makes it suitable for inspecting components where uniform UV-A coverage is required.
The UVG3 2.0 features a rugged, penetrant-resistant construction with IP68 protection, a solarization-resistant white light blocking filter, and a rechargeable battery system. Its compact handheld design supports inspection work in manufacturing facilities, aerospace maintenance, repair environments and field operations.

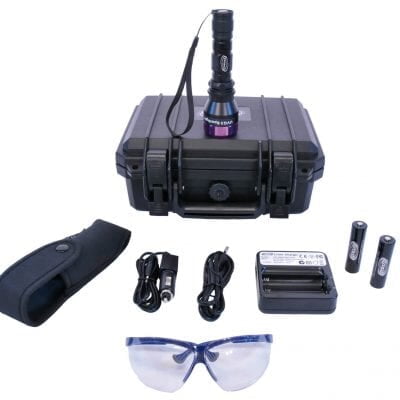

Supplied as a complete single-lamp kit, the unit includes protective UV-blocking goggles, rechargeable batteries, charging accessories, a protective bumper, belt holster and a durable carrying case.
Product Photography
![]() UVG3 2.0 handheld flashlight | ![]() Optical head and UV-A filter |
Key Features
![]() | Compact and ergonomic designThe lightweight flashlight is designed for comfortable handheld operation, particularly where limited working space makes larger UV lamps impractical. The wrist strap and protective bumper support convenient handling during routine inspections. |
Uniform UV-A floodlight beam
The optical system produces a controlled and even UV-A illumination pattern. At 15 inches (38.1 cm), the beam measures approximately 4.8 inches (12 cm) in diameter above the 1,000 µW/cm² irradiance level.
IP68 waterproof and penetrant-resistant
The sealed construction helps protect the flashlight against water ingress and exposure to penetrant inspection materials, making it suitable for industrial NDT environments.
Solarization-resistant optical filter
The integrated white light blocking filter is designed to maintain UV-A transmission while minimizing unwanted visible light, improving the visibility of fluorescent inspection indications.
Rechargeable battery operation
The flashlight operates for approximately four hours on a fully charged battery. The supplied second battery supports extended field inspection work by allowing technicians to replace a discharged battery.
Professional inspection compliance
The Floodlight model is listed by Labino as compliant with ASTM E3022, ISO 3059, Rolls-Royce RRES 90061, Airbus AITM6-1001 and applicable requirements from major aerospace organizations, including Boeing, Pratt & Whitney and the US Air Force.
Replaceable battery and protective bumper
The battery is accessible through the removable end cap. The rubber bumper helps protect the flashlight from impacts and prevents it from rolling off work surfaces.
Designed for Practical Field Inspection
![]() | Convenient battery replacementThe removable end cap provides access to the rechargeable battery. The single kit includes two batteries, allowing the inspector to exchange batteries without replacing the entire light. |
Specifications
| General | |
| Manufacturer | Labino AB |
|---|---|
| Model | UVG3 2.0 Floodlight |
| Manufacturer Part Number | L136 |
| NOMO SKU | NM01L136 |
| Product Type | Handheld UV-A LED floodlight kit |
| NSN | 6635-64-002-7826 |
| Weight With Battery | 230 g (8.2 oz / 0.51 lb) |
| Estimated Box Dimensions (L × W × H) | 15 × 12 × 6 in (381 × 305 × 152 mm), estimated |
| Estimated Kit Shipping Weight | 5 lb (2.27 kg), estimated |
| Optical Performance | |
| UV Light Source | 1 UV-A LED |
| Peak Wavelength | 365 nm ± 5 nm |
| Nominal UV-A Irradiance | Approx. 4,000 µW/cm² at 15 in (38.1 cm) |
| Beam Diameter Above 1,000 µW/cm² | 12 cm (4.8 in) at 15 in distance |
| Visible Light Emission | Less than 1.5 lux (0.1 fc) at 15 in, per published product data |
| Estimated LED Life | 30,000 hours |
| Optical Filter | White light blocking, solarization-resistant |
| Power and Protection | |
| Power Supply | Rechargeable battery |
| Battery Runtime | Approximately 4 hours |
| Ingress Protection | IP68 |
| Penetrant Resistance | Yes |
| Manufacturer Warranty | 2 years, subject to manufacturer terms |
| Standards and Compliance | |
| ASTM | ASTM E3022 |
| ISO | ISO 3059 |
| Rolls-Royce | RRES 90061 |
| Airbus | AITM6-1001 |
| Other Listed Requirements | USAF, Pratt & Whitney and Boeing |
Box dimensions and shipping weight are estimates for planning only. Confirm actual shipping information before processing freight quotations. Lamp weight is based on Labino's current technical specifications. Verify the current standard editions and applicable customer inspection procedures.
What's in the Box
![]() |
|
Contents reflect the current Labino UVG3 2.0 single-kit configuration. Confirm any market-specific power adapters and accessories with NOMO NDT.
Applications
| ✓ Fluorescent penetrant testing (FPI/PT) | ✓ Fluorescent magnetic particle inspection (MPI/MT) |
| ✓ Aerospace component inspection | ✓ Aircraft maintenance and repair |
| ✓ Automotive manufacturing | ✓ Weld and fabricated component inspection |
| ✓ Industrial quality assurance | ✓ Field and maintenance inspections |
Inspection and Handling
UV-A intensity verification
Measure UV-A irradiance using a suitable calibrated radiometer at the required inspection distance. Follow applicable procedures for verifying irradiance, visible light levels and environmental conditions.
Protective eyewear
Use appropriate UV-blocking protective eyewear during inspections. Avoid direct exposure of the eyes and skin to ultraviolet radiation.
Cleaning and storage
Clean the lamp according to the manufacturer's instructions, protect the optical filter from scratches and store the equipment in its carrying case when not in use.
Downloads
| ⬇ Labino 2025 Product Catalog (PDF) |
| ⬇ UVG3 2.0 Series Brochure (PDF) |
| ⬇ Labino Product and Accessories Guide (PDF) |
About Labino
Labino AB is a Swedish manufacturer specializing in professional ultraviolet inspection lighting for non-destructive testing and industrial applications. The company designs, develops and manufactures UV-A inspection lamps used by professionals in aerospace, automotive, transportation, manufacturing and other industries.
Labino's product portfolio includes handheld UV-A lamps, inspection flashlights, headlights, overhead inspection lighting systems and measurement equipment. Its products are engineered to support fluorescent inspection procedures and meet demanding international quality and performance requirements.
