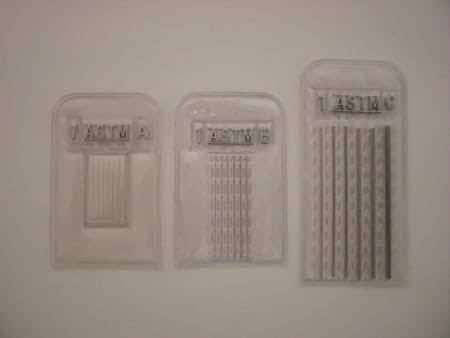

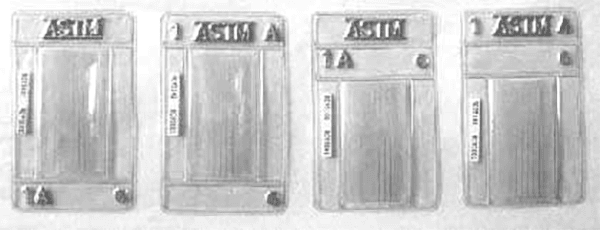

ASTM E 747-97 SET 02-A (AL) WIRE TYPE PENETRAMETER, 2"
$13.99
Product Details
The ASTM E 747-97 Set 02-A (AL) Wire Type Penetrameter is designed to meet radiographic testing standards for image quality in aluminum materials. This penetrameter set, also known as an Image Quality Indicator (IQI), is manufactured to ASTM E747 specifications. The set comprises six aluminum wires of varying diameters to aid in precise radiographic inspection.
Product Features:
- Material: Aluminum wire set “A”, providing excellent compatibility with aluminum components and surfaces.
- Wire Length: 2" (50mm), offering sufficient length for standardized testing applications.
- Wire Sizes: Includes wire sizes 1 through 6, with diameters ranging from 0.08 mm to 0.25 mm.
- Durable Encapsulation: Each wire is encapsulated in vinyl for enhanced durability and handling protection.
Wire Specifications:
- Wire #1: 0.08 mm (0.0032 in)
- Wire #2: 0.10 mm (0.004 in)
- Wire #3: 0.13 mm (0.005 in)
- Wire #4: 0.16 mm (0.0063 in)
- Wire #5: 0.20 mm (0.008 in)
- Wire #6: 0.25 mm (0.010 in)
Standards and Compliance:
- Manufactured in accordance with ASTM E747, for wire-type IQIs.
- Accepted by ASME Sec. V and AWS as a suitable alternative to plaque-type IQIs, providing versatility in testing applications.
Applications:
- Used to assess image quality in radiographic testing, particularly in aluminum materials.
- Suitable for industries requiring stringent radiography standards, such as aerospace, automotive, and structural engineering.
