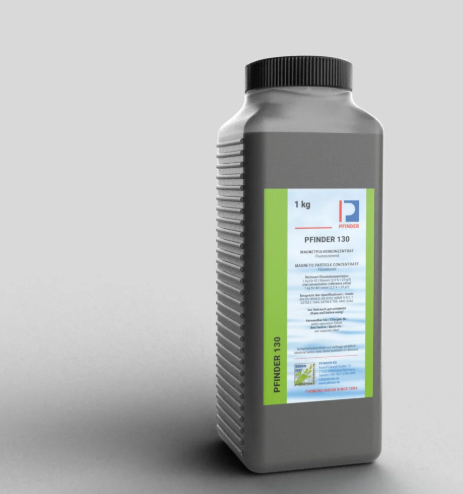

PFINDER 130 is a water-suspendable concentrate of fluorescent magnetic particles with special additives for magnetic particle testing.

PFINDER 130 indicates surface defects of magnetizable materials under UV-light (365 nm).

The concentrate PFINDER 130 has to be stirred in water. An even dispersion of the particles will be obtained very quickly. This product is based on black magnetic particles. Therefore accumulations of the suspension on the surface of tested parts can not be mistaken for corrosion.

Technical Details:

APPLICATION

• The ideal use concentration may vary according to magnetisation strength, surface conditions, after-magnetisation terms and flushing time. Therefore following values should only be understood as an indication:

• 1 kg PFINDER 130 for 40 l to 80 l water (2,5 % to 1,25 %).
  The capability of the magnetic particle suspension should be checked regularly by means of own reference pieces or e.g. reference block 1 according EN ISO 9934-3.

• YOUR GREEN NDT BENEFITS
  | Odourless
  | Free of sec. amines, nitrites and halogens
  YOUR HANDLING + COST SAVING BENEFITS
  | Brilliant, quick and stable indications
  | Low background fluorescence
  | With effective corrosion protection
  Version 12 | 14.10.2022 | Page 1/1

PACKAGING

1-l-bottle | 5-l-canister
These packages are on stock and instantly available. Other packages on demand.

APPROVALS & CONFORMITIES

The product conforms to these specifications /
is suitable for the use according to:
EN ISO 9934-2 | ASME V Art.7 | ASTM E1444 | ASTM E709 | AS 4792 | AMS 3044

SHELF-LIFE & STORAGE

3 years
Storage between + 5 °C and + 45 °C.
Shake or stirr well before use
