NM01MCCAUT001D

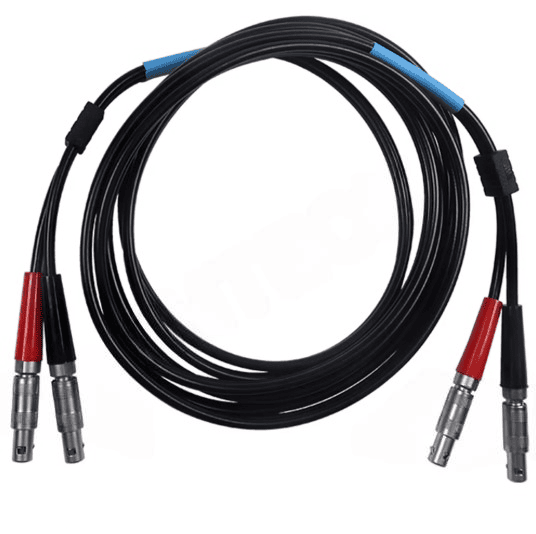

The Dual Lemo 00 to Lemo 00 UT Cable is a high-quality, 72-inch (6 feet) cable specifically designed for connecting dual-element ultrasonic transducers to ultrasonic flaw detectors or thickness gauges. This cable features two independent RG174 coaxial cables enclosed within a durable, single outer sheath, each terminating with industry-standard Lemo 00 connectors at both ends. This dual configuration is essential for the separate transmit and receive signals required by dual-element probes.

The RG174 coaxial cable is a flexible and lightweight 50 Ohm cable known for its reliable signal transmission properties, ensuring optimal performance in ultrasonic testing applications. The Lemo 00 connectors provide secure and dependable connections to a wide range of compatible UT instruments and transducers.

Key Selling Points:

• Dedicated for Dual Element Probes: Essential for the correct operation of dual-element ultrasonic transducers, enabling accurate near-surface flaw detection and thickness measurements.

• Reliable Signal Integrity: Features two independent RG174 coaxial cables within a single sheath for clear and accurate signal transmission.

• Broad Compatibility: Equipped with industry-standard Lemo 00 connectors for seamless integration with a wide range of UT equipment.

• Practical Length: The 72-inch (6 feet) length offers a practical balance of reach and manageability for various inspection tasks.

• Durable and Flexible: The RG174 cable and overall construction are designed to withstand the demands of industrial inspection environments.

• Organized Dual Cable Design: The single outer sheath keeps the two independent cables together for easier handling and reduced clutter.

Benefits:

• Ensures Accurate Dual Element Probe Functionality: Enables precise near-surface flaw detection, corrosion mapping, and thickness gauging.

• Provides Clear Ultrasonic Signals: Minimizes signal loss and interference for reliable test results.

• Offers Versatile Equipment Connectivity: Compatible with numerous UT instruments and dual-element transducers featuring Lemo 00 connectors.

• Convenient for Both Field and Lab Use: The practical length suits a variety of inspection scenarios.

• Long-Lasting Performance: Durable construction ensures the cable can withstand regular use in industrial settings.

• Simplified Cable Management: The dual cables within a single sheath improve handling and organization.

Approximate Dimensions (inches):

• Length: 72 inches

• Diameter of each RG174 cable: Approximately 0.11 inches

• Outer diameter of the dual cable sheath: Approximately 0.25 inches

• Connector dimensions (Lemo 00): Approximately 0.4 inches diameter, 1.6 inches length (including strain relief)

Applications:

This dual Lemo 00 to Lemo 00 UT cable is primarily used to connect dual-element ultrasonic transducers in applications such as:

• Near-surface flaw detection.

• Corrosion and erosion mapping and assessment.

• Detection of pitting and small defects.

• Thickness gauging of thin materials and layered structures.

• Any ultrasonic testing application requiring a dual-element probe with Lemo 00 connectors.
