NM01XXG2505S

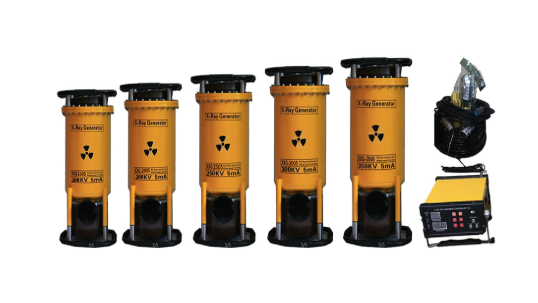

XINLI XXG-2505S Portable X-RAY Flaw Detector (250kV Directional Ceramic Tube)

The XINLI XXG-2505S Portable X-RAY Flaw Detector is a cutting-edge NDT instrument engineered for demanding radiographic inspections in challenging field environments. As part of XINLI's innovative "S" series, this 250kV unit stands out for its remarkably smaller and lighter design, offering unparalleled portability without compromising on power or precision. Equipped with a durable ceramic X-ray tube and designed for superior flaw detection, the XXG-2505S is the ideal solution for pipeline inspections, power plant maintenance, aerospace applications, and other critical areas requiring highly mobile and effective X-ray radiography.

Key Features & Benefits:

• Ultra-Portable "S" Series Design: Significantly reduced in size and weight compared to conventional 250kV units. This compact and lightweight construction enhances single-person transportability and maneuverability, especially beneficial for remote sites, confined spaces, and rope access applications.

• High Voltage Output (150-250 kV): Provides the necessary penetrating power to effectively inspect a wide range of materials, including up to 40mm of A3 steel (standard penetration reference).

• Precise 2.0x2.0mm Focal Spot: Delivers excellent radiographic image resolution, enabling the clear detection of subtle defects such as cracks, porosity, inclusions, and lack of fusion.

• Directional Ceramic X-Ray Tube:

  • Enhanced Durability: The ceramic tube offers superior mechanical strength, thermal stability, and resistance to shock and vibration, ensuring reliability in rugged industrial settings.

  • Consistent Output: Provides stable and uniform X-ray output over prolonged operating periods.

  • Focused Beam: Features a precise directional beam angle of 40∘±5∘, allowing for targeted and efficient radiography.

• SF6 Gas Insulation & Forced Air Cooling: Utilizes SF6 gas for high-voltage insulation and efficient forced air cooling for the X-ray tube, enabling continuous and reliable operation with a 1:1 work-to-rest ratio.

• Integrated/Compact Control Unit: While it typically remains a two-piece system (generator head and controller), the "S" series often implies a more compact and integrated design for the controller, further enhancing portability.

• Comprehensive Safety Features: Equipped with multiple protection systems (over-voltage, under-voltage, over-current, over-temperature) and essential safety interlocks, delayed high voltage activation, and visual/audible alarms to ensure maximum operator safety.

• High Duty Cycle: Designed for continuous and repetitive radiography tasks in the field.

Specifications (Model: XXG-2505S):

• Manufacturer: XINLI (Dandong XINLI Radiography Instrument Co., Ltd.)

• SKU: XXG-2505S

• Type: Directional Portable Industrial X-Ray Flaw Detector

• X-Ray Tube Type: Ceramic Tube

• Output Voltage: 150-250 kV (Continuously adjustable)

• Output Current: Typically 5.0 mA

• Max. Penetration (A3 Steel): 40 mm (at 250kV, 600mm FFD, 5 min exposure)

• Focal Spot Size: 2.0 x 2.0 mm

• Beam Angle: 40∘±5∘

• Power Input: AC 220V ±10%, 50/60 Hz (single phase), ~2.5 kVA

• Insulation Method (Generator): SF6 gas

• Cooling Method (Tube): Forced Air Cooling

• Duty Cycle: 1:1 (e.g., 5 min work, 5 min rest)

• Operating Temperature: −10∘C to +40∘C (14∘F to 104∘F)

• Relative Humidity: ≤85%

• Generator Weight (Approx.):~23-24 kg (50.7 - 53 lbs) - Significantly lighter than standard XXG-2505.

• Generator Dimensions (Approx.):~260 x 260 x 590 mm (10.2 x 10.2 x 23.2 inches) - Noticeably smaller.

• Controller Weight (Approx.): ~8 kg (17.6 lbs)

• Controller Dimensions (Approx.): ~315 x 240 x 160 mm (12.4 x 9.4 x 6.3 inches)

• Standard Accessories (Typically included): X-ray generator, Control unit, Connecting cables (low and high voltage), Power cable, Grounding cable, Alarm lamp, Manuals.

• Certifications: Often CE, ISO certified.
