NM01T49032875

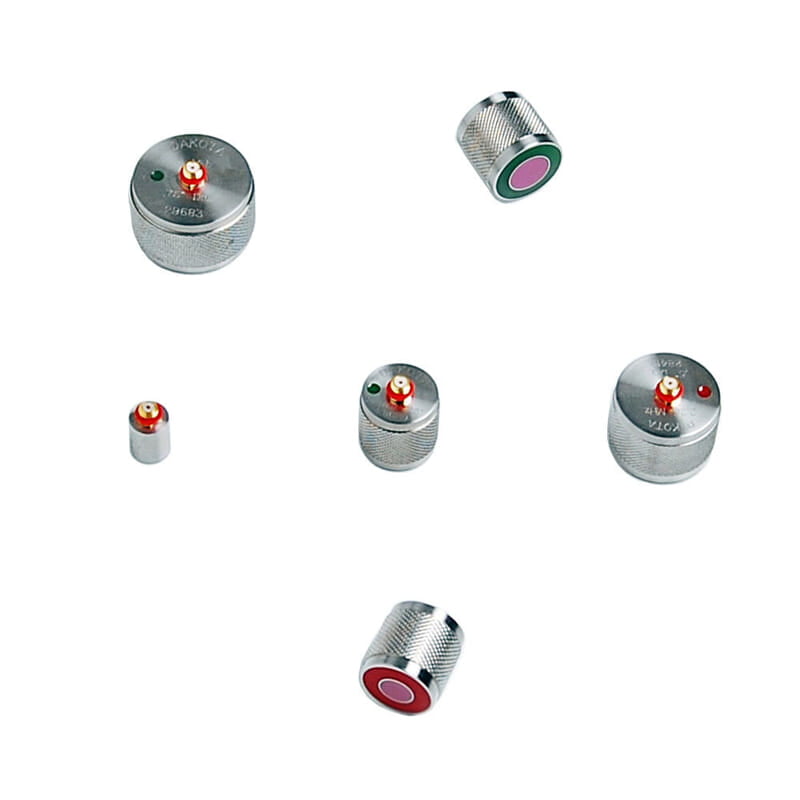

The Dakota Ultrasonics Single Element Contact Transducer is a compact and high-frequency probe designed for precise ultrasonic measurements. This specific model features a small 1/8 inch (0.125") diameter active element and operates at a frequency of 5 MHz. The Microdot connector provides a secure and reliable connection to compatible ultrasonic instruments. The cable entry is on the side of the transducer housing.

This transducer is ideal for applications requiring high resolution and sensitivity, particularly on thinner materials or when detecting small discontinuities near the surface. The small diameter allows for access to confined areas and precise targeting of the inspection point.

Key Features:

• Single Element Contact Probe: Standard design for direct contact ultrasonic testing.

• Frequency: 5 MHz - Offers excellent resolution for detecting small features and measuring thin materials.

• Diameter: 1/8 inch (0.125") - Compact size for localized measurements and access to tight spaces.

• Connector: Microdot - A small and reliable connector for ultrasonic instruments.

• Entry Side: Cable exits from the side of the transducer housing, offering a low profile in some applications.

• Manufacturer: Dakota Ultrasonics - A reputable manufacturer of ultrasonic testing equipment.

Benefits:

• High Resolution: The 5 MHz frequency provides excellent ability to resolve small details and measure thin sections accurately.

• Compact Size: The 1/8" diameter allows for inspection in confined areas and on small components.

• Reliable Connection: The Microdot connector ensures a secure and noise-free signal transmission.

• Versatile Applications: Suitable for a range of materials and inspection tasks where high resolution is needed.

Applications:

• Precise thickness measurement of thin materials.

• Detection of very small surface and near-surface flaws.

• Inspection of small components with limited access.

• Applications requiring high resolution ultrasonic testing.
