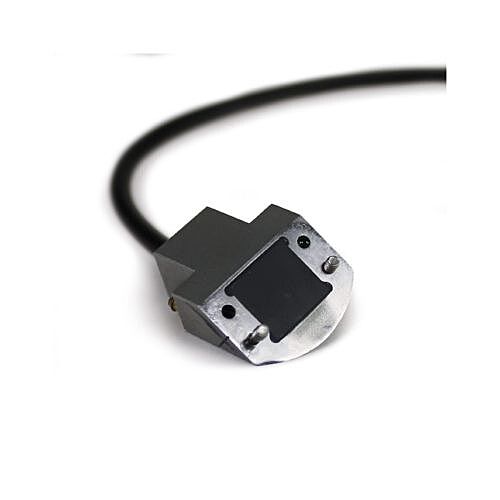

Sonatest — X0AW-N55S-IHC Angle Beam Wedge (55° Shear Wave, AOD 14")
Precision UT Wedge for Steel Inspection Applications SKU: X0AW-002-14Overview
The Sonatest X0AW-N55S-IHC is a precision ultrasonic wedge designed for angle beam inspections on steel components. Configured to generate a 55° shear wave (SW), this wedge is optimized for detecting and evaluating weld defects such as cracks, lack of fusion, and inclusions.
With a cut angle of 39° and an extended Active Offset Distance (AOD) of 14 inches, this configuration is designed for very large geometries and deep inspection zones, providing maximum beam positioning flexibility and extended coverage. The zero delay line design (0 mm) allows direct ultrasonic transmission into the test material, improving signal strength and inspection efficiency.
Engineered for compatibility with Sonatest ultrasonic systems, this wedge is ideal for demanding applications in industries such as oil & gas, fabrication, and power generation where large-scale inspection coverage is required.
What's Included
| Item | Details |
|---|---|
| UT Wedge | X0AW-N55S-IHC, 55° shear wave wedge with 14" AOD |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 6.0 in |
| Width | 4.0 in |
| Height | 3.0 in |
| Dimensions (L × W × H) | 6.0 × 4.0 × 3.0 in |
| Weight | 0.9 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Ultrasonic wedge |
| Wave Type | Shear wave (SW) |
| Inspection Angle (Steel) | 55° |
| Cut Angle | 39° |
| Delay Line | 0 mm |
| AOD (Active Offset Distance) | 14.0 in |
| Application | Angle beam ultrasonic testing |
| Compatibility | Sonatest UT systems |
Performance Features
55° Shear Wave Inspection
Optimized for weld inspection and detection of common discontinuities.
Extended AOD Configuration
14" AOD enables inspection of very large components and deep weld zones.
Zero Delay Line Design
Direct transmission improves signal response and inspection efficiency.
Reliable Performance
Supports consistent and repeatable ultrasonic evaluation.
User-Friendly Design
- Easy probe mounting and alignment
- Lightweight and easy to handle
- Compatible with standard UT setups
- Designed for efficient inspection workflows
Built for Industrial Environments
- Durable construction for demanding applications
- Suitable for field and shop inspections
- Reliable performance in continuous use
- Designed for professional NDT workflows
Compatibility
Compatible with:
- Sonatest ultrasonic probes
- Ultrasonic flaw detectors
- Angle beam UT inspection setups
- Weld inspection workflows
Ideal Applications
- Weld inspection and flaw detection
- Structural steel inspection
- Pipeline and pressure vessel inspection
- Oil & gas and power generation industries
- Fabrication and manufacturing QA/QC
- Large-geometry ultrasonic testing (UT)
