NM015L321.010A32P5IPEX

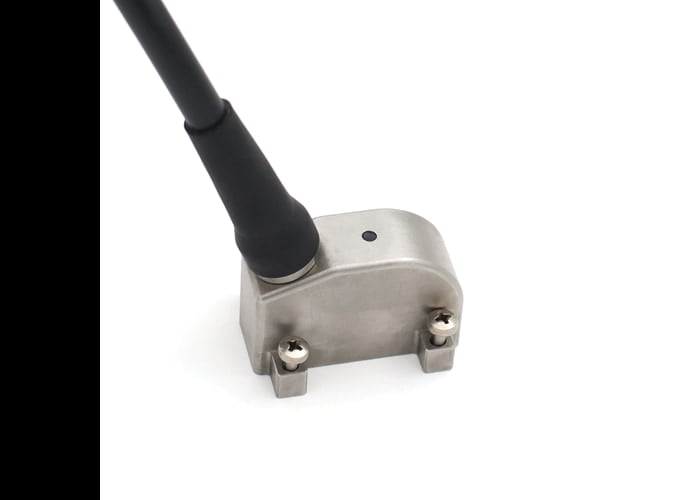

The 32-Element Linear Phased Array Probe (model 5L32-1.0x10-A32-P-5-IPEX) is precision-engineered for accurate and efficient weld inspection. With its 32 active elements and 1 mm pitch, this probe provides high-resolution imaging for detailed assessments. Constructed with a central frequency of 5 MHz and featuring an active aperture of 32 mm x 10 mm, it is ideal for a range of non-destructive testing (NDT) applications. The A32 casing and IPEX connector enhance durability and compatibility, making this probe an essential tool for professionals.

Specifications:

• Frequency: 5 MHz
• Elements: 32
• Pitch: 1 mm
• Active Aperture: 32 mm x 10 mm
• Elevation: 10 mm
• Casing: A32 Housing
• Cable Length: 2.5 m (8 ft), PVC material
• Connector: IPEX
• Impedance Matching: Rexolite

Applications: Designed for weld inspections and other NDT applications, this phased array probe is highly effective for inspecting metals, pipelines, and other structures where precision is critical.

Model Number: 5L32-1.0x10-A32-P-5-IPEX
