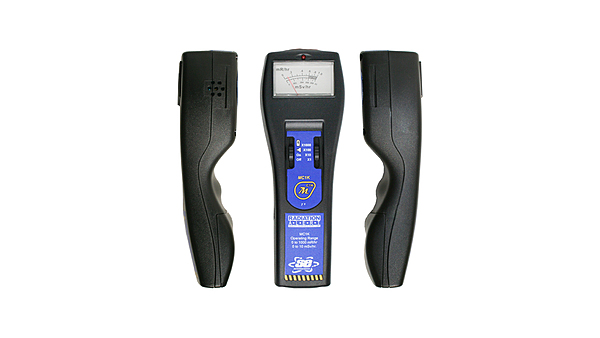

SE International — MC1K Handheld Gamma/X-Ray Survey Meter
4-Range Energy-Compensated Radiation Survey Meter, Up to 1,000 mR/hr / 10 mSv/hr, with Carrying Case & Battery
SKU: MC1K
Overview
The SE International Radiation Alert MC1K is a compact handheld radiation survey meter designed for accurate measurement of Gamma and X-Ray radiation across a broad dose-rate range.
Equipped with an energy-compensated Geiger-Mueller (GM) detector, the MC1K provides a more linear response to Gamma and X-Ray radiation and measures dose rates up to 1,000 mR/hr (10 mSv/hr) across four selectable ranges.
The instrument combines an easy-to-read analog display with audible and visual radiation indicators. An internal beeper provides an audible response to detected radiation events, while a flashing indicator light provides visual confirmation during surveys.
Its portable design, extended battery life, and high measurement range make the MC1K well suited for industrial radiography, X-Ray shielding surveys, radiation safety, industrial gauge monitoring, source location, and general radiation-survey applications.
What's Included
| Item | Details |
|---|---|
| Radiation Survey Meter | SE International Radiation Alert MC1K |
| Carrying Case | Included |
| Battery | 9V alkaline battery included |
| Detector | Energy-compensated Geiger-Mueller tube |
| Measurement Ranges | 4 selectable ranges |
| Maximum Range | 1,000 mR/hr / 10 mSv/hr |
| Radiation Detected | Gamma and X-Ray |
| Manufacturer | SE International |
| SKU | MC1K |
Key Features
Detects Gamma and X-Ray radiation
Maximum measurement capability of 1,000 mR/hr (10 mSv/hr)
Four selectable measurement ranges
Energy-compensated Geiger-Mueller detector
More linear response for Gamma and X-Ray measurement
Detects Gamma and X-Rays down to approximately 40 keV
Analog meter display for immediate dose-rate indication
Built-in audible radiation indicator
Flashing count indicator for visual detection feedback
Anti-saturation protection
Full-scale indication maintained in radiation fields significantly above the maximum measurement range
Pulse output through 3.5 mm jack
Long battery operating life
Lightweight handheld configuration
Suitable for field and facility radiation surveys
Carrying case and battery included
Specifications
| Parameter | Details |
|---|---|
| Product Type | Handheld Gamma/X-Ray radiation survey meter |
| Model | MC1K |
| Detector Type | Energy-compensated, halogen-quenched GM tube |
| Radiation Detected | Gamma and X-Ray |
| Number of Ranges | 4 |
| Range Switch | X1, X10, X100, X1000 |
| Maximum Measurement | 1,000 mR/hr / 10 mSv/hr |
| Energy Sensitivity | Gamma and X-Ray detection down to approximately 40 keV |
| Accuracy | Typically ±15% referenced to Cs-137 |
| Audio Indicator | Internal beeper |
| Visual Indicator | Flashing count light |
| Anti-Saturation | Holds at full scale in fields up to 100× maximum reading |
| Output | 3.5 mm pulse-output jack |
| Power Supply | One 9V alkaline battery |
| Battery Life | Up to approximately 2,000 hours at normal background levels |
| Operating Temperature | -4°F to 131°F (-20°C to 55°C) |
| Humidity Range | 10% to 70% non-condensing |
| Manufacturer | SE International |
| SKU | MC1K |
Measurement Ranges
| Range | mR/hr | mSv/hr |
|---|---|---|
| X1 | 0–1 | 0–0.01 |
| X10 | 0–10 | 0–0.1 |
| X100 | 0–100 | 0–1 |
| X1000 | 0–1,000 | 0–10 |
The four selectable ranges allow technicians to move from low-level radiation surveys to substantially higher dose-rate measurements using the same portable instrument.
Energy-Compensated Detection
The MC1K uses an energy-compensated, halogen-quenched Geiger-Mueller detector specifically suited for Gamma and X-Ray monitoring.
Energy compensation improves detector response across the instrument's specified energy range, providing a more linear indication of Gamma and X-Ray dose rates compared with conventional non-compensated GM detectors.
This makes the MC1K especially useful where dependable dose-rate measurements are required across varying photon energies.
Audible & Visual Radiation Indication
The MC1K provides both audible and visual feedback during radiation surveys.
An internal beeper produces an audible indication as radiation events are detected, while a flashing count indicator provides visual confirmation of radiation activity.
These features help technicians quickly recognize changes in radiation levels while performing field surveys.
Anti-Saturation Protection
The MC1K incorporates an anti-saturation design that keeps the analog meter at full scale when exposed to radiation fields significantly above its maximum measurement range.
This feature is particularly important in high-radiation environments because it helps prevent an excessively strong field from incorrectly causing the meter indication to fall back toward a lower reading.
Product Dimensions & Weight
| Parameter | Specification |
|---|---|
| Length | 8.25 in |
| Width | 2.75 in |
| Height | 1.875 in |
| Dimensions (L × W × H) | 8.25 × 2.75 × 1.875 in |
| Weight | 8.3 oz (235.7 g) without battery |
Box Dimensions & Shipping Weight
| Parameter | Details |
|---|---|
| Box Dimensions (L × W × H) | Not specified by manufacturer |
| Shipping Weight | Not specified by manufacturer |
Ideal Applications
Industrial radiography
Gamma radiation surveys
X-Ray radiation surveys
Non-destructive testing / NDT
Radiation-safety monitoring
X-Ray shielding leakage checks
Accelerator shielding surveys
Industrial gauge monitoring
Cesium-137 gauge surveys
Source location
Lost-source searches
Controlled-area verification
Radiation-protection programs
Field radiation surveys
Facility radiation monitoring
Personal radiation-safety surveys
Industrial inspection environments
About SE International
SE International manufactures Radiation Alert instruments for professional radiation detection, measurement, and monitoring applications.
Its radiation-monitoring products are used in industrial inspection, NDT, radiation safety, laboratories, education, emergency response, and other environments requiring portable and dependable radiation-detection equipment.
