NM01TAB27014X14

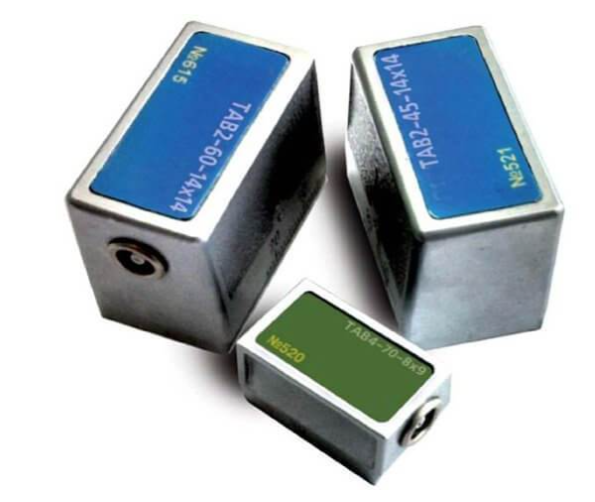

The OKO-NDT Angle Beam Probe TAB is a precisely engineered, single-element ultrasonic transducer designed for advanced non-destructive testing (NDT) applications requiring accurate flaw detection using a high-angle beam. This probe is particularly well-suited for inspections where the orientation of potential defects necessitates a steep angle of incidence.

Operating at a frequency of 2.0 MHz, this probe provides an ideal balance of penetration and resolution, enabling the detection of subtle flaws in a variety of materials. The steep 70° angle beam allows for the detection of defects that are obliquely oriented relative to the test surface, such as certain types of cracks in welds and other structural components.

The 14 x 14 mm active element of the probe ensures a focused and consistent ultrasonic beam, contributing to the accuracy and reliability of inspection results. The industry-standard Lemo 00 connector provides a secure and reliable connection to ultrasonic testing equipment, minimizing signal interference and ensuring optimal data transmission.

Manufactured by OKO-NDT, a trusted provider of NDT solutions, the Angle Beam Probe TAB is constructed from high-quality materials and built to stringent manufacturing standards, ensuring durability and long-term performance in demanding industrial environments.

Key Features and Benefits:

• 2.0 MHz Frequency: Provides a balance of penetration and resolution for versatile applications.

• 70° Angle Beam: Enables detection of obliquely oriented flaws.

• Single Element Design: Offers reliable performance and simplified operation.

• 14 x 14 mm Active Element: Provides a focused and consistent ultrasonic beam.

• Lemo 00 Connector: Ensures a secure and reliable connection.

• OKO-NDT Quality: Manufactured by a reputable provider of NDT equipment.

Applications:

• Weld Inspection: Detection of obliquely oriented cracks and other weld defects.

• Pipe Inspection: Inspection of pipes for flaws that may not be perpendicular to the pipe surface.

• Structural Inspection: Inspection of structural components for angled cracks and other defects.

• General NDT: Applicable in various industries requiring high-angle beam ultrasonic testing.

Technical Details:

• Frequency: 2.0 MHz

• Refracted Angle: 70°

• Element Size: 14x14, 0.550"x0.550"

• Type of Case: Plated Brass

• Connector Type: Lemo00

• Connector Position: Side
