NM01DR100MMU

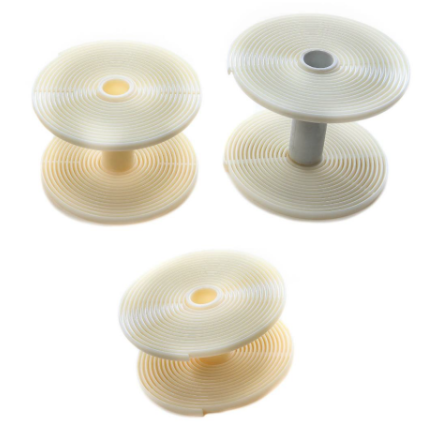

The Developing Reels Assembly 100mm for Radiography is a high-quality, unassembled film-developing reel crafted from durable ABS plastic. Specifically designed for radiography, this reel can hold up to 13 feet of 70mm roll film, providing reliability and efficiency in film development processes.

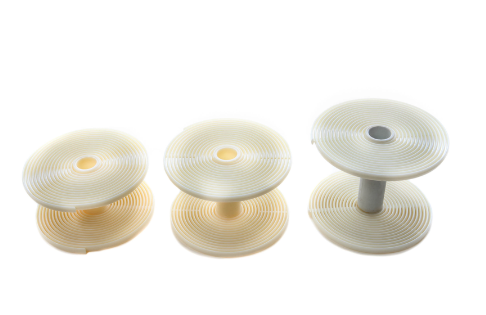

This 100mm developing reel can be easily assembled with two wheels and one hub, allowing customization according to specific development needs. In addition to 100mm reels, 90mm and 4.5" sizes are also available, offering flexibility for different film widths.

Developing reels and rods in this assembly line are essential components for radiographic film processing, ensuring optimal handling and minimization of chemical contamination. The unassembled configuration of the reels allows bulk purchasing, with a minimum order requirement of 100 units, making it an economical choice for labs and facilities requiring high-volume processing capabilities.

Key Features:

1. Durable Material:

   • ABS Plastic: Made from sturdy ABS plastic, providing longevity and resistance to chemicals commonly used in film development.

2. Film Capacity:

   • 13 Feet Capacity: Each reel can accommodate up to 13 feet of 70mm roll film, ensuring efficiency during development.

3. Customizable Assembly:

   • Two Wheels and One Hub Required: Ships unassembled, allowing custom setups for labs with specific needs.

   • Various Sizes: Available in 90mm, 100mm, and 4.5" sizes to suit different film widths and applications.

4. Complementary Developing Rods:

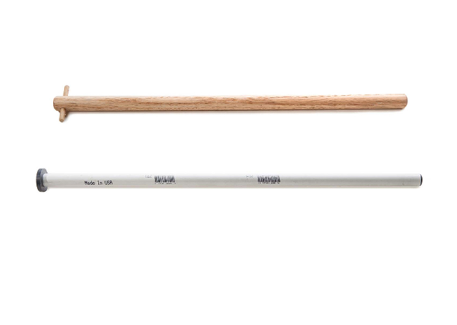

   • PVC and Hardwood Rod Options: PVC rod (3/4" x 24") minimizes chemical contamination, while the hardwood dowel model (3/4" x 18" with a 1/4" crosspiece) provides a sturdy, cost-effective solution for film handling.

Specifications:

• Material: ABS Plastic

• Film Width Compatibility: 70mm roll film

• Reel Size Options: 90mm, 100mm, 4.5"

• Reel Components: Requires two wheels and one hub (sold separately)

• Film Capacity: Holds up to 13 feet of roll film

Purchasing Options:

• Unassembled Developing Reels: Ships with wheels and hubs for assembly; minimum order quantity of 100 units.

Note: Prices are subject to change. Please confirm pricing at the time of your order.
