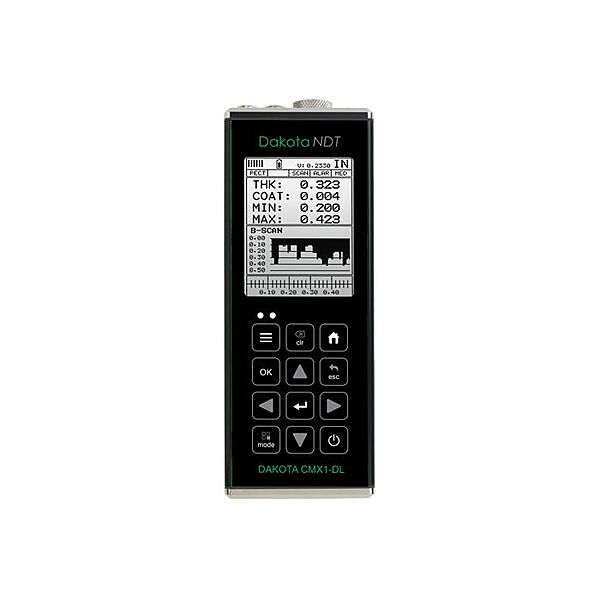

Dakota Ultrasonics — CMX-1 DL Ultrasonic Thickness Gauge (Data Logging)
Advanced UT Thickness Gauge with Data Logging & PC Connectivity SKU: Z-171-0005
Overview
The Dakota Ultrasonics CMX-1 DL is a high-performance ultrasonic thickness gauge designed for accurate measurement of material thickness and corrosion monitoring. Engineered for precision and reliability, this instrument is ideal for inspecting metals, plastics, and other materials in demanding industrial environments.
Featuring dual-mode operation (pulse-echo and echo-echo), the CMX-1 DL allows measurement through coatings without removal, improving efficiency and reducing inspection time. Its data logging capability enables storage and transfer of inspection data, supporting detailed analysis and reporting.
Built for portability and durability, this gauge is widely used in industries such as oil & gas, power generation, and manufacturing where accurate thickness measurement and corrosion assessment are critical.
What's Included
| Item | Details |
|---|---|
| CMX-1 DL Unit | Ultrasonic thickness gauge |
| Standard Transducer | General-purpose probe |
| Couplant | Ultrasonic coupling gel |
| AA Batteries | Power supply |
| Carrying Case | Plastic protective case |
| Calibration Certificate | Factory calibration documentation |
| User Manual | Operating instructions |
| PC Software | Data management software |
| Data Transfer Cables | Connectivity accessories |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 14.0 in |
| Width | 10.0 in |
| Height | 6.0 in |
| Dimensions (L × W × H) | 14.0 × 10.0 × 6.0 in |
| Weight | 5.5 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Instrument Type | Ultrasonic thickness gauge |
| Model | CMX-1 DL |
| Measurement Modes | Pulse-Echo (PE), Echo-Echo (EE) |
| Display | Digital |
| Data Logging | Yes |
| Connectivity | PC software & data transfer cables |
| Operation | Portable / handheld |
Performance Features
Dual Measurement Modes
Pulse-echo and echo-echo modes enable measurement with or without coatings.
Data Logging Capability
Stores inspection data for reporting and analysis.
High Measurement Accuracy
Provides reliable thickness readings for corrosion monitoring and quality control.
PC Connectivity
Includes software and cables for data transfer and management.
User-Friendly Design
- Easy-to-read digital display
- Intuitive controls for quick setup
- Portable and lightweight
- Designed for efficient inspection workflows
Built for Industrial Environments
- Rugged construction for field use
- Reliable performance in demanding conditions
- Suitable for continuous operation
- Designed for professional NDT applications
Compatibility
Compatible with:
- Standard ultrasonic transducers
- Industrial UT workflows
- Corrosion monitoring programs
- Data management and reporting systems
Ideal Applications
- Corrosion monitoring and thickness measurement
- Pipeline and pressure vessel inspection
- Oil & gas and petrochemical industries
- Power generation and infrastructure
- Manufacturing and maintenance inspections
- General ultrasonic thickness gauging
About Dakota Ultrasonics
Dakota Ultrasonics is a leading manufacturer of ultrasonic testing equipment, specializing in thickness gauges and flaw detectors. Their products are known for durability, accuracy, and performance in demanding industrial inspection environments.
