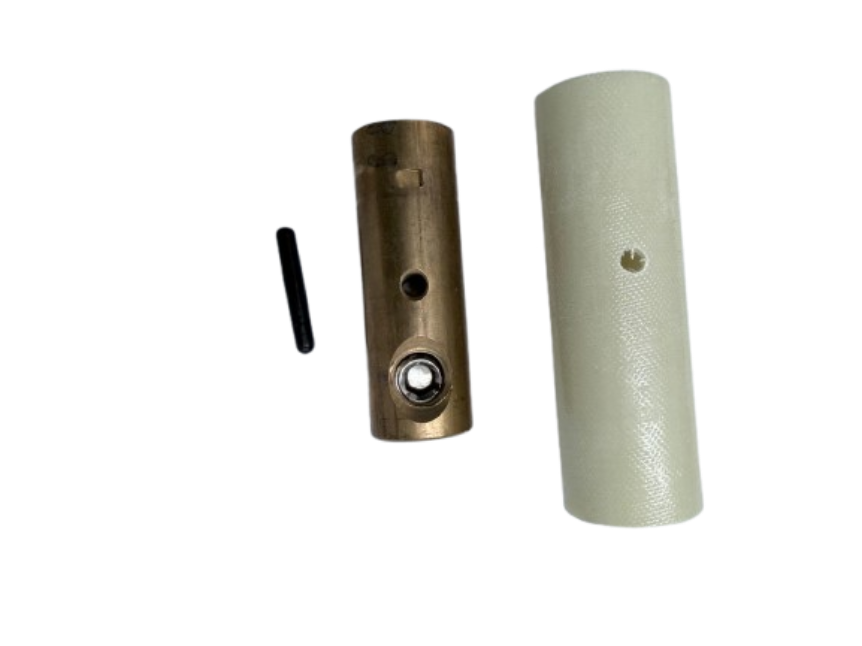

300 A Cam-Lock Female Connector Set with High-Temperature Sleeves
Heavy-Current Female Cam-Lock Connection Set for Compatible Industrial Inspection EquipmentSKU: R1601028
Overview
The 300 A Cam-Lock Female Connector Set, SKU R1601028, is designed for heavy-current electrical connections in compatible industrial inspection and magnetic particle testing equipment. The female Cam-Lock configuration provides a secure connection point for cables and equipment using corresponding male Cam-Lock connectors.
Rated for applications requiring connections up to 300 A, the set supports current transfer between compatible cables, power units, magnetizing equipment, and inspection accessories. The included high-temperature sleeves provide additional insulation and protection around the connector assemblies during industrial use.
This connector set is suitable for equipment maintenance, connector replacement, cable fabrication, and system assembly applications where dependable removable high-current connections are required. Connector dimensions, cable capacity, polarity, and equipment compatibility should be confirmed before installation.
What's Included
| Item | Details |
|---|---|
| Connector Set | 300 A female Cam-Lock connector set |
| Connector Type | Female Cam-Lock |
| Current Rating | 300 A |
| Protective Components | High-temperature insulating sleeves |
| Application | Heavy-current equipment and cable connection |
| Installation Type | Cable-mounted connector assembly |
| SKU | R1601028 |
Note: The exact number of connectors and any additional installation hardware should be confirmed before ordering.
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 8.0 in |
| Width | 6.0 in |
| Height | 3.0 in |
| Dimensions (L × W × H) | 8.0 × 6.0 × 3.0 in |
| Weight | 2.0 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Heavy-current electrical connector set |
| Connector Style | Cam-Lock |
| Connector Gender | Female |
| Current Rating | 300 A |
| Sleeve Type | High-temperature protective sleeve |
| Connection Method | Insert-and-lock Cam-Lock connection |
| Installation | Compatible heavy-current cable assembly |
| Primary Use | Power and inspection-equipment connection |
| Equipment Compatibility | Systems using compatible male Cam-Lock connectors |
| Intended Environment | Field, shop, fabrication, maintenance, and QA/QC |
| SKU | R1601028 |
Performance Features
300 A Current Capacity
Designed for industrial equipment and cable assemblies requiring a heavy-current connection rated up to 300 A.
Female Cam-Lock Configuration
Accepts a compatible male Cam-Lock connector using a secure insert-and-lock connection method.
High-Temperature Sleeves
The included sleeves provide insulation and protection around the connector assemblies during demanding industrial applications.
Serviceable Cable Connection
Suitable for replacement, maintenance, repair, or fabrication of compatible heavy-current inspection cables.
Removable Equipment Connection
Supports repeated connection and disconnection during equipment setup, transportation, inspection, and maintenance.
User-Friendly Design
Cam-Lock format supports fast connection and disconnection
Female connector design accepts compatible male connectors
High-temperature sleeves help insulate the connector assemblies
Suitable for replacement and cable-fabrication applications
Compact components support field equipment transportation
Easy to integrate into compatible industrial cable systems
Reusable design supports routine equipment setup and maintenance
Built for Industrial Environments
Designed for heavy-current industrial electrical connections
Suitable for field, shop, fabrication, maintenance, and QA/QC use
Protective sleeves support demanding operating conditions
Practical for inspection-equipment cable replacement and repair
Supports repeated connection and disconnection
Suitable for compatible magnetic particle inspection equipment
Intended for installation by qualified personnel
Connectors should be inspected regularly for wear, contamination, heat damage, and loose cable terminations
Compatibility
Compatible with:
Male Cam-Lock connectors of the corresponding size and rating
Heavy-current industrial cable assemblies
Compatible magnetic particle inspection equipment
Magnetizing units using removable Cam-Lock connections
Current-carrying inspection leads
Compatible power-supply and accessory connections
Field and shop NDT equipment configurations
Replacement, maintenance, and custom cable assemblies
Cable gauge, connector dimensions, polarity, current rating, and equipment compatibility should be confirmed before installation.
Ideal Applications
Magnetic particle inspection equipment
Heavy-current inspection cables
Magnetizing-unit connections
Replacement cable assemblies
Industrial power connections
Field equipment maintenance
Cable repair and refurbishment
Fabrication and manufacturing equipment
NDT equipment service departments
Inspection-system setup and maintenance
QA/QC equipment support
Industrial electrical connection inventory
About the Product
The R1601028 300 A Cam-Lock Female Connector Set provides a practical replacement or cable-assembly solution for compatible heavy-current inspection equipment. Its female Cam-Lock configuration and high-temperature protective sleeves support secure, insulated connections in field, shop, maintenance, and industrial NDT environments.
