NM0321250

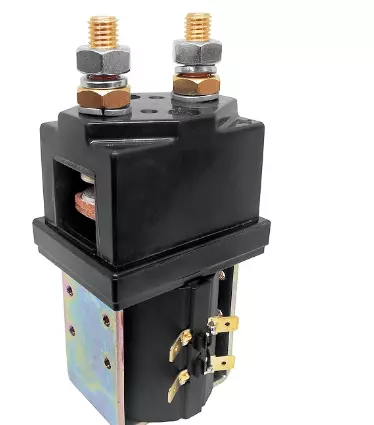

The Albright SW200 SPST Contactor is a robust and reliable single pole, single throw (SPST) contactor designed for direct current (DC) loads, particularly motors used in electric vehicles such as industrial trucks and airport tractors. With a 250 Amp rating, this contactor is suitable for both interrupted and uninterrupted loads, making it versatile for switching resistive, capacitive, and inductive circuits.
Key Features:
SPST Configuration: Single Pole, Single Throw, Normally Open (NO) contacts.
High Current Rating: Capable of handling continuous currents up to 250 Amps.
Double Breaking Contacts: Features double-breaking main contacts with silver alloy tips for weld resistance, durability, and excellent conductivity.
Versatile Load Switching: Suitable for resistive, capacitive, and inductive loads.
Compact and Serviceable: Features a compact design and is fully serviceable with a range of spare parts available.
M10 Main Terminals: Equipped with M10 stud main terminals for secure connections.
6.3mm Spade Coil Connections: Standard 6.3mm spade terminals for easy coil wiring.
Flexible Mounting: Can be mounted via M5 tapped holes or optional mounting brackets (horizontal or vertical mounting recommended with M10 studs pointing upwards).
Optional Features (may vary by specific model):
Magnetic Blowouts: Some models include magnetic blowouts to reduce arcing and increase the breaking capacity, especially at higher voltages.
Auxiliary Switches: Options for auxiliary switches to provide additional signaling or interlocking functions.
Coil Suppression: Various coil suppression options like diodes or resistors to protect the control circuitry.
Different Coil Voltages: Available in a range of DC coil voltages (e.g., 12V, 24V, 48V, etc.).
Continuous or Intermittent Duty Coils: Options for coils designed for continuous operation or intermittent use.
Benefits:
Reliable High-Current Switching: Provides dependable switching for demanding DC applications.
Durable and Long-Lasting: Silver alloy contacts ensure excellent wear resistance and conductivity.
Versatile Application: Suitable for a wide range of electric vehicles and industrial equipment.
Easy to Install and Maintain: Compact design and readily available spare parts simplify installation and servicing.
Enhanced Safety (with magnetic blowouts): Reduces arcing for safer high-current switching.
Applications:
Electric vehicles (forklifts, pallet trucks, airport tractors, etc.)
Battery-powered equipment
DC motor control
Power distribution systems
Telecommunications equipment
Uninterruptible Power Supplies (UPS)
The Albright SW200 SPST 250Amp Contactor is a robust and dependable solution for high-current DC switching needs in a variety of demanding applications. Its durable construction, versatile load handling capabilities, and ease of use make it a reliable choice for controlling critical circuits.
Technical Details:
Device Type | NO - SP - ST |
Voltage | 48V D.C. |
Coil Type | Continuous |
Amps | 250 Amps |
Coil Resistance (Ohms) | 141 |
Pull-In Voltage (V) | 35.0 Max. |
Drop Out Voltage (V) | 12.0 Max. |
Coil Power Dissipation (W) | 16.34 |
Typical Pull-In Time | 40ms |
Typical Voltage Drop Per Pole | 40mV |
Operating Ambient Temperature | -40 to +60℃ |
Weight | 1.35Kg |
Application | Uninterrupted |
Thermal Current Rating | 250A |
Intermittent Current Rating: | |
30% Duty | 450A |
40% Duty | 390A |
50% Duty | 360A |
60% Duty | 320A |
70% Duty | 300A |
