NM01L636
Choose Quantity
Labino — UVG3 Floodlight UV-A Inspection Light Kit
Battery-Powered UV-A Flashlight / Headlight, Approx. 3,000 µW/cm²
SKU: L636
Overview

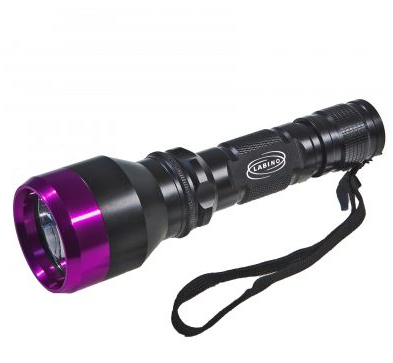

The Labino UVG3 Floodlight is a compact, battery-powered UV-A inspection light designed for fluorescent NDT applications.
The Floodlight produces approximately 3,000 µW/cm² at 38 cm (15 in) with a wide beam suited for general fluorescent magnetic particle and penetrant inspection.
Its lightweight portable design and rechargeable battery operation make it ideal for field inspections, workshops, fabrication facilities, and other professional NDT environments.

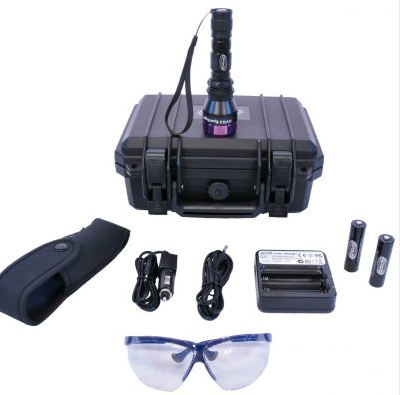

What's Included
| Item | Quantity |
|---|---|
| UVG3 Floodlight Lamp | 1 |
| Rechargeable Batteries | 2 |
| Car Charger | 1 |
| External Wall Charger | 1 |
| UV-Block Goggles | 1 |
| Carrying Case | 1 |
| Belt Holster | 1 |
| Wrist Band | 1 |
| Manufacturer | Labino |
| SKU | L636 |
Key Features
UV-A Floodlight for fluorescent NDT inspection
Initial UV intensity: approx. 3,000 µW/cm² at 15 in
Beam diameter above 1,200 µW/cm²: approx. 130 mm (5.1 in)
Battery-powered operation
Approx. 4.5-hour battery runtime
Compact and lightweight design

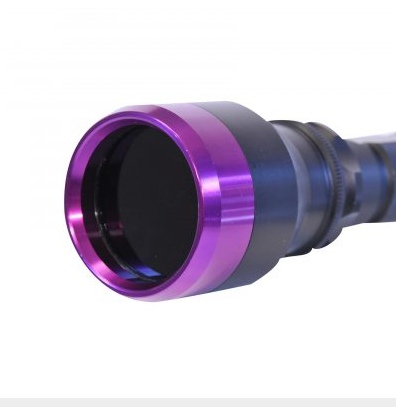

White-light blocking filter
Designed for fluorescent MPI and penetrant inspection
Includes two rechargeable batteries
Complete portable kit with chargers and carrying case
Specifications
| Parameter | Details |
|---|---|
| Product Type | UV-A Inspection Flashlight / Headlight |
| Series | UVG |
| Model | Floodlight |
| UV-A Intensity at 15 in | ≈ 3,000 µW/cm² |
| Beam Size >1,200 µW/cm² | Ø 130 mm / 5.1 in |
| Power Source | Rechargeable Battery |
| Battery Runtime | Approx. 4.5 hours |
| Lamp Weight | Approx. 7.4 oz (211 g) |
| Manufacturer | Labino |
| SKU | L636 |
Ideal Applications
Fluorescent Magnetic Particle Inspection (MPI)
Fluorescent Penetrant Inspection (FPI/LPI)
Weld inspection
Aerospace inspection
Pipeline inspection
Manufacturing QA/QC
Fabrication inspection
Component inspection
Field NDT applications
Box Dimensions & Shipping Weight
| Parameter | Estimated |
|---|---|
| Box Dimensions (L × W × H) | 12 × 10 × 5 in |
| Shipping Weight | 3.0 lb |
Note: Box dimensions and shipping weight are estimated for inventory and shipping purposes.
About Labino
Labino manufactures professional UV-A inspection lights and NDT equipment for fluorescent penetrant and magnetic particle testing across aerospace, manufacturing, oil & gas, automotive, and industrial inspection applications.
