NM01CB05CS2X2

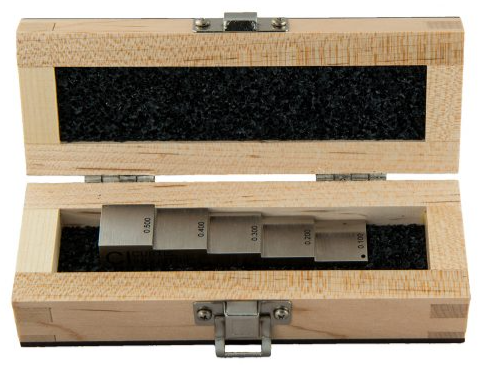

The Curtis 5 Step Thickness Reference Standard is a precisely machined calibration block essential for verifying the accuracy and linearity of ultrasonic thickness gauges. This standard features five distinct thickness steps on a convenient 2.0" x 2.0" pad size, allowing for quick and reliable checks across a range of measurement points.

Machined from 1018 Steel, a common and well-characterized material for ultrasonic testing, this reference standard provides consistent and predictable acoustic properties. The five step heights are .200", .400", .600", .800", and 1.00", offering incremental thickness values for comprehensive gauge verification.

Crucially, this Curtis reference standard is certified traceable to NIST (National Institute of Standards and Technology). This certification provides documented assurance that the physical dimensions of the block have been calibrated against national standards, guaranteeing the accuracy and reliability of your thickness gauge verification process.

Key Features:

• Five Step Design: Provides five distinct thickness points for comprehensive gauge checking.

• Step Heights: .200", .400", .600", .800", 1.00" - covering a useful measurement range.

• Compact Pad Size: 2.0" x 2.0" for easy handling and portability.

• 1018 Steel Material: A standard material for reliable ultrasonic response.

• NIST Traceable Certification: Ensures the accuracy and traceability of the block's dimensions to national standards.

• Manufactured by Curtis Industries: A trusted name in the production of high-quality NDT calibration standards.

Benefits:

• Ensures Accurate Thickness Measurements: Allows for regular verification of your ultrasonic thickness gauge's accuracy.

• Verifies Gauge Linearity: Enables checking the gauge's performance across its measurement range.

• Meets Quality Control Requirements: Provides documented traceability for quality assurance procedures.

• Easy to Use: The compact size and clear step heights facilitate quick and efficient gauge checks.

• Durable Construction: Made from steel for long-lasting use.

Applications:

• Calibration and verification of ultrasonic thickness gauges in various industries.

• Quality control checks to ensure accurate thickness measurements.

• Training and demonstration purposes for ultrasonic testing personnel.

• Compliance with industry standards and inspection procedures requiring traceable calibration.
