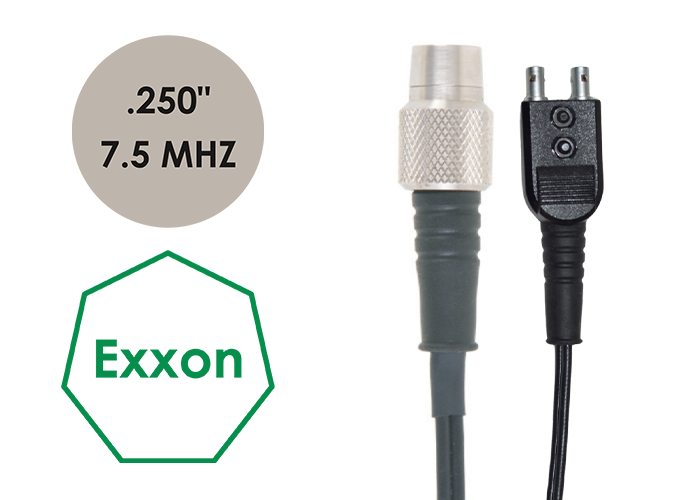

NM01T1523200

The DAKOTA NDT Dual Element Transducer is a high-performance ultrasonic transducer meticulously engineered for exceptional near-surface resolution in critical thickness gauging and flaw detection applications. Operating at a frequency of 7.5 MHz with a 1/4 inch element diameter, this transducer is specifically designed to provide enhanced detail in the near-surface region of inspected materials.

The dual element configuration, utilizing separate transmitting and receiving crystals, offers significant advantages. It provides superior near-surface resolution, improved acoustic coupling on challenging surfaces (such as rough or curved materials), and minimizes interference from delay line reflections in certain high-temperature scenarios. The carefully angled elements create a focused ultrasonic beam, optimizing sensitivity for detecting small anomalies.

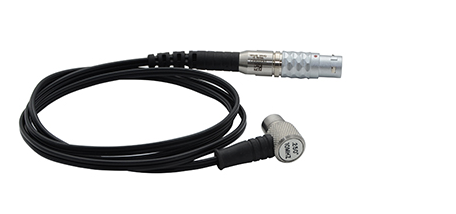

This robust model features a potted cable, ensuring a durable and environmentally sealed connection that offers excellent resistance to moisture and dust. The side connector provides a practical and space-efficient cable exit, allowing for flexible routing in confined inspection areas. The transducer is encased in a high wear stainless steel casing with a substantial 1/4 inch thickness, providing exceptional durability and resistance to abrasion in demanding industrial environments, ensuring a long service life even under harsh conditions.

The 7.5 MHz frequency delivers excellent resolution for detecting very small flaws and accurately measuring thin materials. The 1/4 inch element diameter provides a balance between sensitivity and beam coverage, making it suitable for a wide range of inspection tasks requiring high near-surface detail.

Key Selling Points:

• Ultimate Near-Surface Resolution: Dual element design and high frequency provide exceptional detail for detecting minute flaws close to the surface.

• Optimized for Thin Materials and Critical Flaw Detection: Ideal for precise gauging and identifying small discontinuities.

• Ultra-Durable Construction: High wear stainless steel casing with a 1/4" thickness ensures maximum longevity in harsh environments.

• Environmentally Sealed: Potted cable provides a robust and protected connection against moisture and dust.

• Convenient Side Connector: Offers flexible cable routing, especially in tight spaces.

• Improved Performance on Challenging Surfaces: Dual element design enhances coupling on rough or curved materials.

Benefits:

• Detects Extremely Small Flaws: High frequency and focused beam enable the identification of very fine discontinuities.

• Provides Highly Accurate Thickness Measurements: Ideal for precision gauging of thin-walled components.

• Ensures Maximum Service Life: Robust construction with a thick stainless steel casing withstands the most demanding conditions.

• Guarantees Reliable Performance: Potted cable provides a stable and protected connection.

• Enhanced Accessibility: Side connector allows for use in confined spaces.

Applications:

This dual element transducer is the ideal choice for critical applications demanding the highest near-surface resolution and durability, including:

• Ultra-precise thickness measurement of thin-walled components in demanding environments.

• Critical early-stage corrosion detection and mapping in harsh conditions.

• Detection of extremely small surface and near-surface cracks, pitting, and other minute flaws in rugged industrial settings.

• Inspection of components with complex geometries and limited access where maximum durability is required.

• Certain high-temperature applications (within specified limits) in challenging environments.
