NM01PQC2510

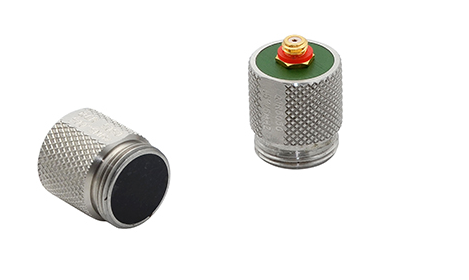

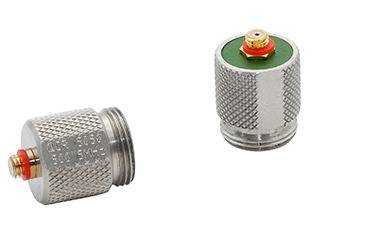

Quick Change Shear Wave Transducer (QC) Compposite, 0.250", 10Mhz, Dakota NDT
The Dakota NDT Quick Change (QC) Composite Shear Wave Transducer is a high-performance transducer designed for efficient and detailed angle beam ultrasonic testing. Featuring a 0.250-inch (1/4") element and a high center frequency of 10 MHz, this transducer delivers exceptional resolution for detecting even very small discontinuities, making it ideal for critical inspections, particularly in thinner materials and for near-surface flaw characterization.
Constructed with an advanced composite element, this transducer offers potential benefits such as increased sensitivity and a broader bandwidth compared to conventional piezoelectric elements. This can lead to improved detection capabilities, enhanced signal-to-noise ratios, and more accurate flaw characterization. The innovative "Quick Change" (QC) design incorporates a threaded connection, allowing for rapid and tool-free interchangeability with a variety of compatible angle beam wedges. This feature significantly enhances inspection efficiency, enabling users to quickly switch between different inspection angles or frequencies (with different QC transducers and wedges) with minimal downtime.
Key Selling Points:
Rapid "Quick Change" Compatibility: Threaded connection allows for fast and easy, tool-free exchange with compatible angle beam wedges.
Ultra-High 10 MHz Frequency: Provides exceptional resolution for the detection of minute flaws, crucial for high-sensitivity inspections.
Optimized 0.250" Element Size: Offers a focused beam profile ideal for detailed and precise inspections.
Advanced Composite Element Technology: Delivers potentially superior sensitivity and a broader bandwidth for enhanced detection capabilities and signal quality.
Specifically Designed for Shear Wave Applications: Engineered for optimal performance in angle beam inspections utilizing shear wave techniques.
Benefits:
Maximize Inspection Throughput: Quickly adapt to different inspection requirements by easily changing between various angles or transducer/wedge combinations.
Achieve Unparalleled Resolution: Detect extremely small flaws with exceptional clarity, critical for high-precision inspections.
Enhance Detection Performance: The composite element technology can provide improved sensitivity and signal-to-noise ratios, leading to more reliable flaw detection.
Highly Versatile Inspection Capabilities: Suitable for a wide range of materials and inspection requirements when used with appropriate Quick Change wedges.
Simplified Operation and Setup: The quick change mechanism streamlines setup and adjustments, saving valuable inspection time.
Approximate Dimensions (inches):
Element Diameter: 0.250 inches (1/4")
Overall Length (excluding connector): Approximately 0.75 to 1.25 inches (This can vary slightly depending on the specific model).
Body Diameter: Approximately 0.5 to 0.75 inches (This can vary slightly depending on the specific model).
Connector Type: Typically Microdot (verify with the specific model).
Applications:
High-resolution weld inspection, particularly for the detection of very small defects in critical applications.
Detailed inspection of thinner materials requiring exceptional resolution and near-surface flaw detection.
Applications demanding rapid changes between different inspection angles for comprehensive coverage.
Use in conjunction with compatible Dakota NDT Quick Change angle beam wedges for a complete and efficient inspection system.
Ideal for industries requiring high sensitivity and precise flaw characterization.
