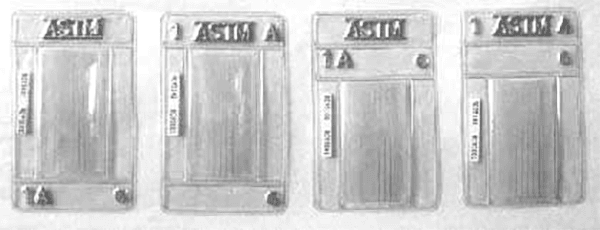

ASTM E 747-97 Wire Type Penetrameter — Set 02-B (Aluminum), 2"
Image Quality Indicator (IQI) for Radiographic Testing — Aluminum Material SKU: IQI02BOverview
The ASTM E 747-97 Set 02-B Wire Type Penetrameter is a precision radiographic image quality indicator (IQI) designed to verify image sensitivity and ensure compliance with ASTM radiographic testing standards. Manufactured in accordance with ASTM E747, this wire-type penetrameter is used to evaluate the quality of radiographic images by indicating the smallest detectable wire diameter.
This set is designated as 02-B and constructed from aluminum (Al), making it suitable for radiographic inspection of aluminum and other low-density materials. The 2-inch format allows for convenient placement on test objects while maintaining clear visibility during exposure.
Widely used in aerospace, manufacturing, and industrial radiography applications, this IQI supports quality assurance processes by confirming that inspection techniques meet required sensitivity and detection standards.
What's Included
| Item | Details |
|---|---|
| Wire Type Penetrameter | ASTM E747 compliant — Set 02-B (Aluminum), 2" length |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 4.0 in |
| Width | 3.0 in |
| Height | 1.0 in |
| Dimensions (L × W × H) | 4.0 × 3.0 × 1.0 in |
| Weight | 0.2 lb |
Key Specifications
| Parameter | Details |
|---|---|
| IQI Type | Wire type penetrameter |
| Standard Compliance | ASTM E747-97 |
| Set Designation | 02-B |
| Material | Aluminum (Al) |
| Length | 2 in |
| Application | Radiographic image quality verification |
| Construction | Calibrated wire set in holder |
Performance Features
ASTM Compliance
Manufactured to ASTM E747 standards, ensuring reliable and standardized radiographic sensitivity verification.
Accurate Sensitivity Measurement
Indicates the smallest visible wire diameter, confirming the effectiveness of radiographic techniques.
Material-Specific Calibration
Designed for aluminum and similar materials, ensuring accurate evaluation for low-density inspections.
Consistent & Repeatable Results
Precision wire construction ensures dependable and repeatable image quality assessment.
User-Friendly Design
- Compact 2" size for easy placement
- Clearly marked wire identification
- Simple integration into radiographic setups
- Suitable for field and laboratory use
Built for Industrial Environments
- Durable construction for repeated use
- Reliable performance in radiography workflows
- Maintains clarity across multiple exposures
- Designed for professional NDT applications
Compliance & Standards
This IQI supports inspection requirements in accordance with:
- ASTM E747 — Wire Type Image Quality Indicators
- ASME Section V — Radiographic Examination (when applicable)
- Industry standards for radiographic sensitivity verification
Compatibility
Compatible with:
- Industrial radiography (RT) systems
- X-ray and gamma ray inspection setups
- Film and digital radiography workflows
- Aluminum and low-density material inspections
Ideal Applications
- Radiographic inspection of aluminum components
- Aerospace and manufacturing QA/QC
- Weld and casting inspection
- Oil & gas and industrial radiography
- Any RT application requiring ASTM-compliant IQIs
