NM01FVA2

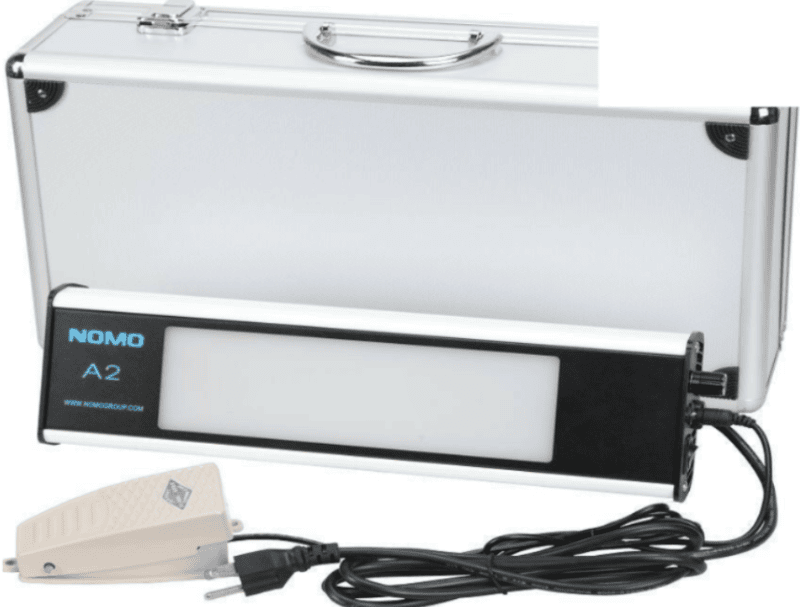

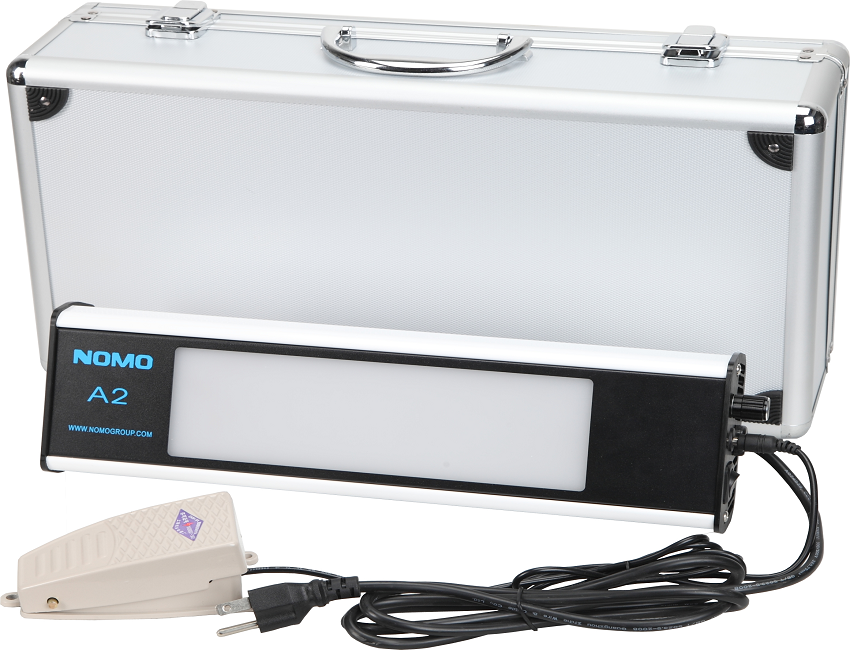

The A2 Industrial LED Film Viewer is an advanced, reliable solution for high-luminance X-ray film inspection in non-destructive testing (NDT) applications. Equipped with a high-powered LED system, this film viewer delivers uniform, powerful illumination across its 220mm x 68mm viewing window, providing maximum visibility and clarity for detailed film analysis. Its sleek aluminum alloy frame and long-lasting LED ensure durability and extended operating life, making it ideal for industrial environments.

Key Features:

• High-Power LED: Ensures bright, consistent lighting, enhancing film clarity and detection.
• Durable Design: Housed in an aluminum alloy case for durability in industrial settings.
• Extended LED Lifespan: Over 50,000 hours, reducing maintenance needs.
• Cool-Off Fan: Built-in cooling fan enables up to 10 hours of continuous operation, preventing overheating.
• Adjustable Brightness: Control brightness manually or with the foot pedal switch, up to a preset 90,000 Lux for precision viewing.

Operation Manual:

1. Foot Pedal Setup: Plug in foot pedal for adjustable operation.
2. Power and Brightness: Turn on power to initiate with the lowest brightness.
3. Operating Modes: Choose between foot pedal mode for brightness adjustment or manual mode, using the side dip switch.
4. Fan Check: Regularly monitor the cooling fan to prevent overheating.

Technical Specifications:

• Max Luminance: 110,000 cd/m² for high-contrast viewing.
• Uniformity: 0.98, ensuring consistent brightness.
• Diffusion Factor: 0.95 for clear, even illumination.
• Maximum Reading Density: 4.1 H/D for superior resolution.
• Viewing Window Size: 220mm x 68mm, ideal for detailed film analysis.
• Dimensions: 370 x 110 x 65mm, compact for ease of use.
• Power Requirement: 110-240V, suitable for global applications.
• Power Consumption: 68W.
• Weight: 8 lbs for portability and ease of transport.

Applications:

• Specifically designed for NDT and industrial X-ray film viewing.
• Ideal for applications in manufacturing, aerospace, and quality control sectors.
