Adelix — ADL MS54 PRO Expert 4-Channel Vibration Analyzer with Laser Shaft Alignment

SKU: ADL-MS54PRO

Overview

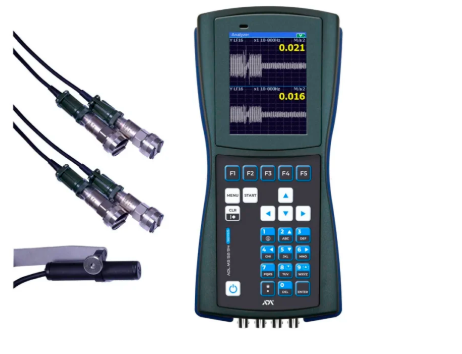

The Adelix ADL MS54 PRO is the most advanced and capable instrument in the Adelix ADL MS vibration analyzer series — a professional-grade, 4-channel portable vibration analyzer and laser shaft alignment system combined into a single, compact, field-ready unit. Designed for expert-level diagnosis of the vibration state and the root causes of non-stationary equipment operation, the ADL MS54 PRO brings together an extensive suite of measurement, analysis, balancing, and alignment capabilities that would otherwise require multiple separate instruments.

Whether performing routine condition monitoring, advanced fault diagnosis, multi-plane dynamic balancing, or precision laser shaft alignment on coupled rotating machinery, the ADL MS54 PRO handles it all — with a rugged, portable design rated IP54 (instrument) and IP68 (accelerometers), an 8-hour rechargeable battery, and an intuitive color display that keeps the operator in control in even the most demanding industrial environments.

What's Included

Box Dimensions & Shipping Weight (Estimated)

Dimensions and weight are estimates based on typical packaging for 4-channel vibration analyzer kits of this class. Please verify with your freight forwarder prior to shipping.

Vibration Analyzer Specifications

Laser Alignment System Specifications

4-Channel Vibration Analysis — Expert Diagnostics

With four simultaneous measurement channels, the ADL MS54 PRO is capable of monitoring four independent measurement points simultaneously — enabling direct cross-channel comparison and phase analysis that single and dual-channel instruments cannot achieve. This makes the 4-channel configuration essential for:

• Identifying the directionality and propagation of vibration between machine elements
• Performing cross-channel phase analysis to isolate specific fault types
• Simultaneous monitoring of drive end and non-drive end bearings on both the driver and driven machine in a single acquisition pass
• Reduced total measurement time on complex machinery trains

The wide 1–25,000 Hz frequency range covers the full diagnostic spectrum from very low-speed machinery and structural resonance through to high-frequency bearing defect frequencies, gear mesh frequencies, and blade pass frequencies.

Dynamic Balancing — Up to 8 Correction Planes

The ADL MS54 PRO's integrated balancing function is one of the most capable available in a portable instrument — supporting up to 8 correction planes and 16 measurement points simultaneously. This goes far beyond the single or dual-plane balancing found in most portable analyzers, enabling:

• Multi-plane balancing of complex rotor systems — turbines, fans, multi-stage pumps, and paper machine rolls
• Precise correction weight calculation for each plane, minimizing residual imbalance to the lowest achievable level
• Field balancing without removing the rotor from the machine — saving significant time and cost compared to workshop balancing
• Balancing of rotors that cannot be balanced in a single plane due to their geometry or operating mode

Laser Shaft Alignment — Wireless, Fast, and Precise

The ADL MS54 PRO's laser shaft alignment system uses two ultralight wireless laser sensors with integrated Bluetooth — communicating directly with the display unit over a range of up to 100 meters without any cables between the sensors and the analyzer. This wireless architecture delivers:

• Complete freedom of movement — no cable runs between sensors and display unit; the operator can position and rotate the sensors without managing sensor cables
• Fast setup — the supplied universal V-brackets with chains attach to any shaft diameter from 20 to 250 mm in seconds without special tools
• Wide sensor separation range — minimum 70 mm to maximum 10 m between sensors, covering everything from compact pump-motor sets to long coupled machinery trains
• Full alignment modes — horizontal and vertical alignment, soft foot detection, coupling gap measurement, gasket simulator, and thermal expansion calculation
• PDF report generation — alignment results exported directly as a PDF report from the instrument for immediate documentation and archiving

ISO 10816 Compliance — Quick Severity Evaluation

The ADL MS54 PRO includes built-in ISO 10816 vibration severity evaluation — allowing the operator to immediately assess the measured vibration level against the applicable standard limits for the machine class being inspected. Color-coded evaluation zones (Good, Satisfactory, Unsatisfactory, Unacceptable) give instant, objective pass/fail feedback without manual lookup or calculation — making the ADL MS54 PRO equally effective as a quick condition screening tool and as a detailed diagnostic instrument.

Measurement & Analysis Capabilities

• General vibration parameters — acceleration (m/s²), velocity (mm/s RMS), displacement (µm peak-to-peak)
• FFT spectrum analysis — up to 102,400 lines of resolution for fine frequency discrimination
• Overall vibration level — broadband RMS values for quick condition screening per ISO 10816
• Bearing condition monitoring — high-frequency envelope analysis for early bearing defect detection
• Gear diagnostics — gear mesh frequency analysis and sideband evaluation
• Time waveform recording — raw signal capture for advanced post-processing
• RPM measurement — via optical probe, 10–200,000 RPM range
• Route-based data collection — structured measurement routes for systematic recurring condition monitoring programs
• 8 GB internal storage — extensive measurement archive capacity for long-term trend data
• PDF and other format report generation — professional reports generated directly on the instrument

Compliance & Standards

The ADL MS54 PRO supports measurements and evaluations in accordance with the following standards:

• ISO 10816 — Mechanical vibration: Evaluation of machine vibration by measurements on non-rotating parts
• ISO 20816 — Mechanical vibration: Measurement and evaluation of machine vibration
• ISO 1940-1 — Mechanical vibration: Balance quality requirements for rotors in a constant (rigid) state
• ISO 13373-1 / 13373-2 — Condition monitoring and diagnostics of machines: Vibration condition monitoring
• ISO 286-1 — Geometrical tolerances for shaft alignment evaluation

Ideal Applications

• Condition monitoring and predictive maintenance of rotating machinery
• Bearing fault detection and diagnosis — rolling element and plain bearings
• Gearbox diagnostics — gear mesh, wear, and backlash analysis
• Multi-plane field balancing of fans, turbines, pumps, and rotors
• Laser shaft alignment of coupled pump-motor, compressor-motor, and turbine-generator sets
• Resonance and structural vibration analysis
• Acceptance testing of new or repaired machinery
• Industries: metallurgy, mechanical engineering, petrochemical, oil and gas, aerospace and defense, thermal and nuclear power, agriculture, transport, and heavy manufacturing

Adelix ADL MS Series — Model Comparison
