NM01T7041405

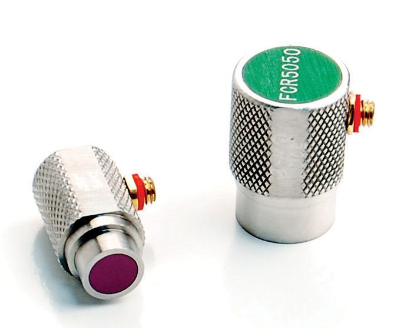

The DAKOTA NDT Magnetic Bolting Transducer is a specialized ultrasonic transducer expertly engineered for the precise measurement of tension in larger bolts. Featuring a 1/2 inch diameter contact face, this transducer provides optimal coupling with larger bolt heads, ensuring effective and reliable ultrasonic signal transmission. Operating at a versatile 2.25 MHz frequency, it is well-suited for a wide range of bolt materials and lengths commonly found in critical structural applications. The integrated magnetic coupling offers a strong, consistent, and repeatable attachment to ferromagnetic bolts, guaranteeing accurate ultrasonic readings for dependable tension assessment.

Equipped with a standard Microdot connector, this transducer provides a secure and compact interface with a broad range of ultrasonic testing instruments. Manufactured by DAKOTA NDT, a recognized leader in high-quality ultrasonic testing equipment, this magnetic bolting transducer is built for durability and precise performance in demanding industrial environments.

By accurately measuring the minute changes in a fastener's length as tension is applied, this transducer enables the precise determination of bolt preload, which is paramount for ensuring the structural integrity and operational safety of critical bolted connections involving larger fasteners.

Key Selling Points:

• Optimized Magnetic Coupling for Larger Bolts: Ensures secure and repeatable attachment for consistent measurements on larger fasteners.

• Versatile 1/2 Inch Diameter Contact Face: Provides optimal coupling with a wide range of larger bolt head sizes.

• Efficient 2.25 MHz Frequency: Well-suited for accurate tension measurement in common bolt materials and lengths used in structural applications.

• Industry-Standard Microdot Connector: Offers a compact and secure connection to various ultrasonic instruments.

• Trusted DAKOTA NDT Quality: Engineered for durability and accurate performance in industrial settings.

• Enables Precise Bolt Tension Measurement for Larger Fasteners: Allows for accurate assessment of preload, crucial for structural integrity in larger assemblies.

Benefits:

• Achieve Accurate Tensioning of Larger Bolts: Provides precise measurement of bolt elongation, leading to correctly applied preload in critical larger joints.

• Enhance Structural Safety in Larger Assemblies: Verifies proper bolt tension, minimizing the risk of structural failures in critical connections involving larger fasteners.

• Improve Assembly Efficiency and Quality for Larger Fasteners: Offers a reliable and repeatable method for confirming bolt preload in larger assemblies.

• Ensure Consistent Measurements on Larger Bolts: Magnetic attachment guarantees repeatable transducer placement for reliable data acquisition on larger fasteners.

• Built for Industrial Durability: Robust design ensures reliable performance in demanding environments.

Applications:

The DAKOTA NDT Magnetic Bolting Transducer is ideal for:

• Monitoring bolt tension in critical structural connections involving larger fasteners across various industries.

• Implementing quality control during bolt tightening and assembly processes for larger bolts.

• Performing non-destructive evaluation of bolt preload in construction, manufacturing, and infrastructure applications involving larger fasteners.

• Ensuring the integrity of bolted joints in heavy machinery, large equipment, and critical structural assemblies utilizing larger fasteners.

The DAKOTA NDT Magnetic Bolting Transducer 1/2", 2.25 MHz, Microdot provides a precise and reliable solution for measuring and monitoring tension in larger bolts, ensuring the integrity and safety of critical structural connections in a wide array of demanding applications. Its magnetic coupling and optimized specifications deliver consistent and accurate results for larger fasteners.
