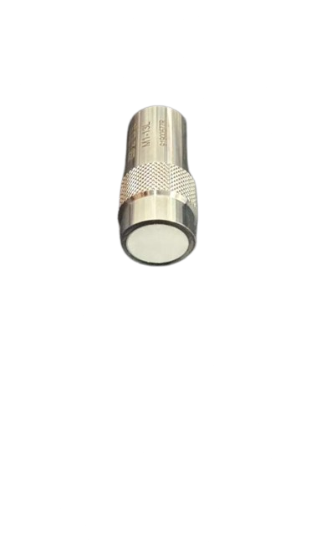

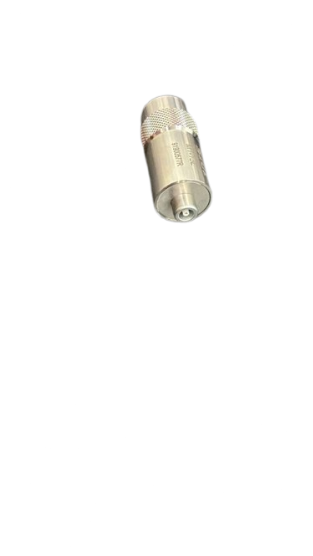

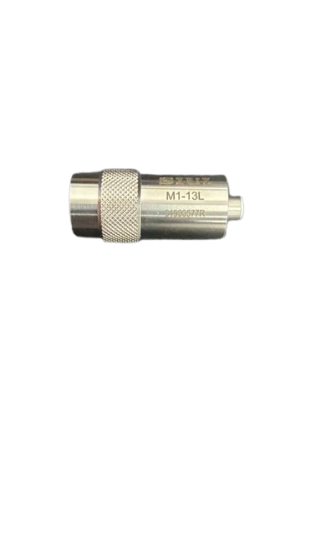

SIUI — Delay Line Thickness Gauge Probe (1 MHz, 13 mm, Lemo 00)
Ultrasonic Delay Line Transducer for Precision Thickness Measurement SKU: M1-13LOverview
The SIUI Delay Line Thickness Gauge Probe (1 MHz, 13 mm) is a specialized ultrasonic transducer designed for accurate thickness measurement, particularly in applications requiring improved near-surface resolution. Operating at 1 MHz with a 13 mm element size, this probe provides deep penetration while maintaining stable signal performance.
Equipped with a delay line, this probe enhances measurement capability on thin materials and near-surface regions by separating the initial pulse from the measurement signal. This results in improved accuracy and reduced dead zone, making it suitable for coatings, thin sections, and precision applications.
The Lemo 00 connector ensures secure and reliable signal transmission, while the robust design supports consistent performance in demanding industrial environments. This probe is ideal for use with ultrasonic thickness gauges across industries such as manufacturing, oil & gas, and power generation.
What's Included
| Item | Details |
|---|---|
| UT Probe | 1 MHz, 13 mm delay line thickness gauge probe |
| Connector | Lemo 00 interface |
| Protective Case | Storage and transport protection (if applicable) |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 6.0 in |
| Width | 4.0 in |
| Height | 3.0 in |
| Dimensions (L × W × H) | 6.0 × 4.0 × 3.0 in |
| Weight | 0.7 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Probe Type | Delay line ultrasonic transducer |
| Frequency | 1 MHz |
| Element Size | 13 mm |
| Connector Type | Lemo 00 |
| Configuration | Single element with delay line |
| Application | Thickness measurement |
Performance Features
Delay Line Technology
Improves near-surface resolution and reduces dead zone for precise measurements.
Deep Penetration Capability
1 MHz frequency enables inspection of thicker or attenuative materials.
Enhanced Measurement Accuracy
Provides stable and repeatable readings for thickness evaluation.
Reliable Signal Transmission
Lemo 00 connector ensures consistent and secure connectivity.
User-Friendly Design
- Easy connection to thickness gauges
- Stable contact surface for accurate readings
- Lightweight and compact
- Designed for efficient inspection workflows
Built for Industrial Environments
- Durable construction for demanding applications
- Suitable for field and plant inspections
- Reliable performance in continuous use
- Designed for professional NDT workflows
Compatibility
Compatible with:
- Ultrasonic thickness gauges
- UT inspection systems with Lemo 00 connectors
- Industrial inspection workflows
- Precision thickness measurement setups
Ideal Applications
- Thickness measurement of thin materials
- Coating and layered material inspection
- Near-surface defect evaluation
- Oil & gas and power generation industries
- Manufacturing and quality control
- General ultrasonic thickness gauging
About SIUI
SIUI is a leading manufacturer of ultrasonic testing equipment and probes, providing reliable and high-performance solutions for industrial inspection. Their products are widely used in demanding NDT applications where precision, durability, and efficiency are essential.
