Proceq — Equotip 550 Leeb D Hardness Testing System Sensor Kit
Advanced Portable Leeb Hardness Tester with Impact Device D, Test Block & ISO 17025 Calibration SKU: 35610002Overview

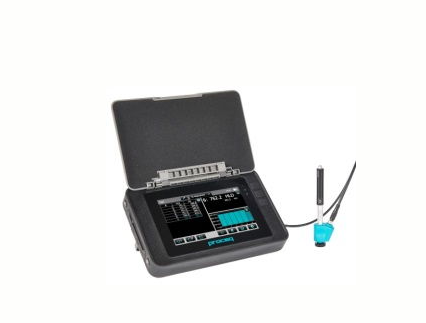

The Proceq Equotip 550 Leeb D Hardness Testing System Sensor Kit is an advanced portable hardness testing system designed for fast, reliable, and non-destructive hardness measurement of metallic materials. Using the Leeb rebound method with the Equotip Basic Leeb Impact Device D, this system provides accurate hardness readings for field, shop, and quality control applications.
Equipped with the Equotip touchscreen unit and rechargeable battery, the system offers intuitive operation, clear data display, and efficient measurement handling. The included ISO 17025 accredited calibrations according to DIN EN ISO 16859 provide traceable measurement confidence for professional hardness testing workflows.
Supplied as a complete kit with impact device D, impact body D/DC, spare impact body, support rings, test block, coupling paste, roughness comparator plate, cables, power supply, documentation, carrying strap, and carrying case, the Equotip 550 is ideal for industrial environments where portability, accuracy, and compliance are essential.
What's Included
| Item | Details |
|---|---|
| Equotip 550 Unit | Touchscreen hardness tester with rechargeable battery |
| Impact Device | Equotip Basic Leeb Impact Device D |
| Calibration | ISO 17025 accredited calibration according to DIN EN ISO 16859 |
| Calibration Type | Indirect, single level, vertical calibration |
| Impact Body | Impact Body D/DC |
| Spare Impact Body | Spare impact body type D/DC |
| Support Rings | D6 and D6a support rings |
| Cleaning Brush | Brush for impact device maintenance |
| Impact Device Cable | Cable for probe connection |
| Test Block | ~775 HLD / ~56 HRC test block |
| Test Block Calibration | ISO 17025 accredited calibration according to DIN EN ISO 16859-3 |
| Coupling Paste | Included for testing support |
| Power Supply | Charging / power adapter |
| USB Cable | Data transfer cable |
| Surface Roughness Comparator | Comparator plate included |
| Carrying Strap | Portable use accessory |
| Carrying Case | Protective transport case |
| Documentation | QSG, product certificate, and calibration certificate |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 16.0 in |
| Width | 12.0 in |
| Height | 6.0 in |
| Dimensions (L × W × H) | 16.0 × 12.0 × 6.0 in |
| Weight | 8.0 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Instrument Type | Portable hardness testing system |
| Model | Equotip 550 Leeb D |
| Measurement Method | Leeb rebound hardness testing |
| Impact Device | Basic Leeb Impact Device D |
| Impact Body | D/DC |
| Spare Impact Body | Type D/DC included |
| Test Block | ~775 HLD / ~56 HRC |
| Calibration Standard | DIN EN ISO 16859 and DIN EN ISO 16859-3 |
| Calibration Accreditation | ISO 17025 accredited |
| Calibration Method | Indirect, single level, vertical calibration |
| Interface | Touchscreen |
| Operation | Portable / handheld |
| Manufacturer | Proceq |
| SKU | 35610002 |
Performance Features
Advanced Leeb D Hardness Testing
Provides fast and reliable hardness measurements using the standard D impact device.
ISO 17025 Accredited Calibration
Supports traceable measurement confidence for professional QA/QC and inspection programs.
Certified Test Block Included
Includes a ~775 HLD / ~56 HRC test block with ISO 17025 accredited calibration.
Touchscreen Operation
Provides intuitive navigation, clear readings, and efficient data handling.
User-Friendly Design
- Portable touchscreen system for field and shop use
- Includes impact device, support rings, test block, and accessories
- Rechargeable battery supports mobile inspection workflows
- Surface roughness comparator plate helps support proper test preparation
- Supplied in a carrying case for organized transport and storage
Built for Industrial Environments
- Durable design for professional hardness testing applications
- Suitable for maintenance, production, and quality control use
- Reliable performance in field and workshop conditions
- Designed for repeatable material verification workflows
Compatibility
Compatible with:
- Leeb hardness testing procedures
- Equotip Basic Leeb Impact Device D
- D/DC impact body configurations
- D6 and D6a support ring applications
- ISO 17025 calibrated inspection programs
- Industrial QA/QC and material verification workflows
Ideal Applications
- Portable hardness testing
- Material verification
- Heat treatment inspection
- Manufacturing quality control
- Maintenance and repair operations
- Field hardness measurement
- Large component and heavy equipment testing
- Industrial QA/QC inspection programs
About Proceq
Proceq, part of Screening Eagle Technologies, is a global leader in portable material testing instruments, offering advanced solutions for hardness testing, concrete inspection, and non-destructive testing applications. Their Equotip systems are trusted worldwide for precision, durability, and reliable field performance.
