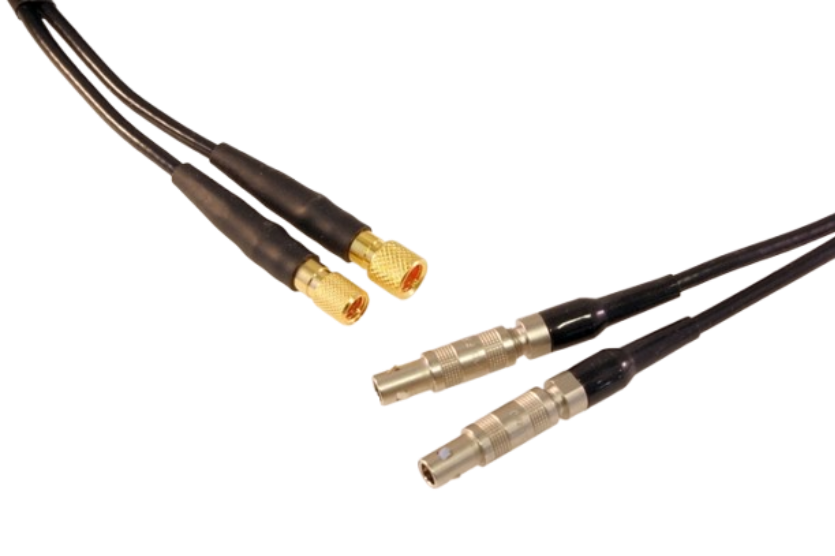

NM01MCCAUT003D

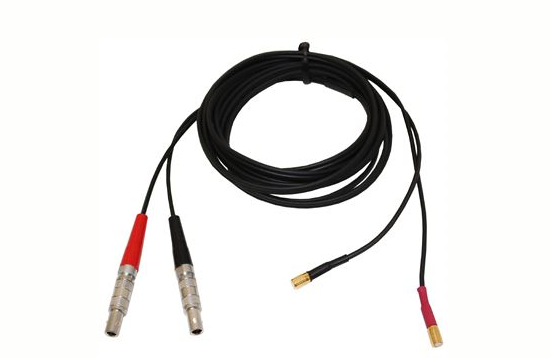

The DUAL, UT Cable Lemo 00-Microdot, RG174, 2M, MC, is a specialized coaxial cable designed for use in ultrasonic testing (UT) applications. This cable facilitates the transmission of ultrasonic signals between dual-element transducers and UT instrumentation.

Key Features:

• Dual-Element Transducer Compatibility:

  • Designated as "DUAL," this cable is specifically configured for use with dual-element ultrasonic transducers, which are employed in applications requiring separate transmit and receive elements.

• Lemo 00 to Microdot Connectors:

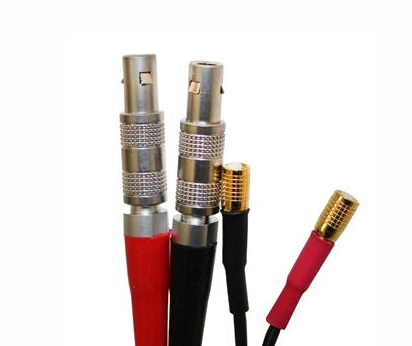

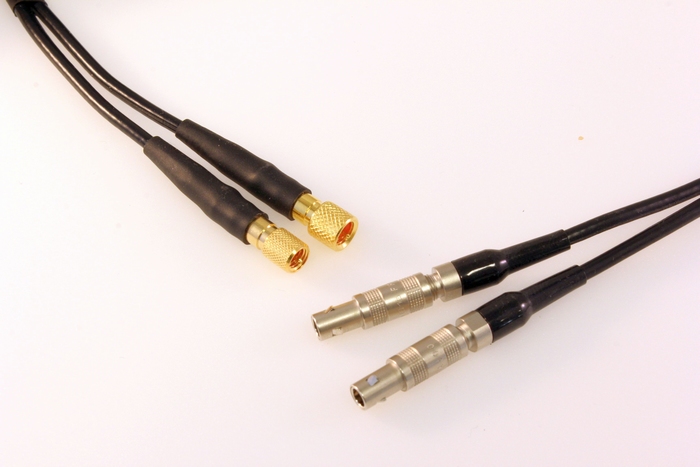

  • Features a Lemo 00 connector on one end and a Microdot connector on the other, providing compatibility with a wide range of UT equipment and transducers. Lemo 00 connectors are known for their secure, push-pull locking mechanism, and Microdot connectors are commonly used for their compact size and reliable signal transmission.

• RG174 Coaxial Cable:

  • Utilizes RG174 coaxial cable, a standard type of cable known for its flexibility and suitability for signal transmission in various applications, including ultrasonic testing.

• 2-Meter Cable Length:

  • Provides a 2-meter length, offering sufficient reach for most UT inspection setups.

• MC Manufacturing:

  • Manufactured by MC, indicating a specific source and potential adherence to quality standards.

Applications:

• Dual-Element Ultrasonic Testing:

  • Essential for connecting dual-element transducers to UT equipment, enabling accurate flaw detection and material characterization.

• Non-Destructive Testing (NDT):

  • Used in various NDT applications where dual-element ultrasonic transducers are employed for inspection purposes.

• Industrial Ultrasonic Inspections:

  • Used in a variety of industrial settings where UT inspections are needed.

Importance:

• Reliable Signal Transmission:

  • Ensures accurate and consistent transmission of ultrasonic signals, contributing to reliable inspection results.

• Connector Compatibility:

  • The Lemo 00 and Microdot connectors provide versatility and compatibility with a wide range of UT equipment.

• Optimal Cable Length:

  • The 2-meter length provides flexibility in inspection setups.
