NM01C5500G

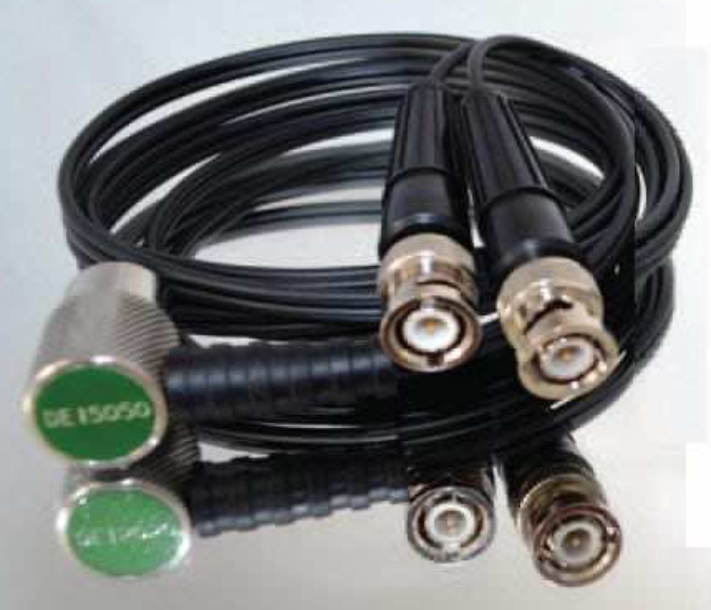

This CNDT Contact Transducer is a versatile and widely used ultrasonic transducer designed for direct contact thickness gauging and flaw detection applications. Featuring a center frequency of 5 MHz and a 0.5 inch (12.7 mm) diameter element, this transducer offers a balanced combination of penetration and resolution for a broad range of materials and inspection tasks.

The 5 MHz frequency provides good sensitivity for detecting moderately sized discontinuities while also offering sufficient penetration depth for many common materials like steel, aluminum, and plastics. The 0.5 inch diameter element provides a practical contact area for stable coupling and a well-defined sound beam, contributing to accurate and reliable measurements.

Equipped with a standard BNC connector, this transducer ensures easy and secure connection to a wide variety of ultrasonic flaw detectors and thickness gauges. Its robust construction is designed to withstand the rigors of industrial use, providing reliable performance in various testing environments.

Key Selling Points:

• Versatile 5 MHz Frequency: Offers a good balance of penetration and resolution for general-purpose testing.

• Practical 0.5" Diameter Element: Provides stable coupling and a well-defined sound beam.

• Standard BNC Connector: Ensures compatibility with a wide range of ultrasonic instruments.

• Durable Construction: Built to withstand demanding industrial environments.

• Reliable CNDT Quality: Ensures consistent and dependable performance.

Benefits:

• Accurate Thickness Measurements: Provides reliable readings for quality control and material assessment.

• Effective Flaw Detection: Capable of identifying moderately sized subsurface discontinuities.

• Wide Range of Applications: Suitable for various materials and inspection tasks.

• Easy to Use and Connect: Standard BNC connector ensures simple integration with existing equipment.

• Durable and Long-Lasting: Designed for extended use in industrial settings.

Applications:

This 5 MHz, 0.5" diameter contact transducer is commonly used for:

• Thickness Gauging: Measuring the thickness of various materials from one side.

• General Flaw Detection: Identifying subsurface discontinuities like cracks, voids, and inclusions.

• Weld Inspection: Examining welds for common defects.

• Corrosion Surveys: Assessing material loss due to corrosion.

• Bond Testing: Evaluating the integrity of bonded structures.

• Quality Control in Manufacturing: Ensuring material integrity and dimensional accuracy.

The CNDT Contact Transducer, 5 MHz, 0.5" Diameter, BNC Connector is a reliable and versatile tool for a wide range of ultrasonic testing needs, offering a good balance of performance and compatibility for both thickness gauging and flaw detection applications.
