NM01DCCS

The Curtis DC Calibration Block is a precision-engineered reference standard essential for accurately calibrating your ultrasonic testing (UT) equipment for shear wave inspections. Manufactured from high-quality 1018 steel, this block provides consistent acoustic properties crucial for reliable calibration.

To ensure longevity and maintain its accuracy, this DC calibration block features a durable nickel plating. This protective layer offers excellent resistance to corrosion and wear, safeguarding your investment and guaranteeing consistent performance over time. The block is specifically designed with the required radii (typically a 1.0" radius overlaying a 2.0" radius on a 180° segment) to meet the stringent calibration requirements of industry standards such as AWS (American Welding Society) and ASTM E164.

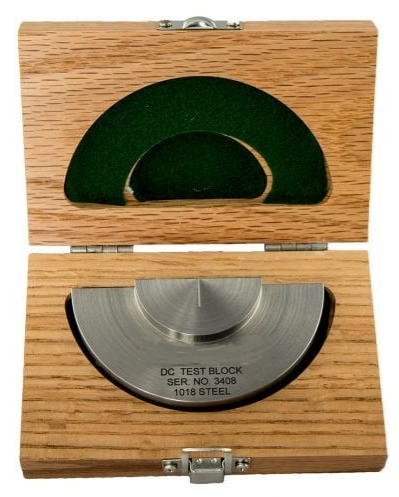

For secure storage and easy transportation, this DC calibration block comes complete with a robust hard case. This protective case ensures that your calibration standard remains in optimal condition when not in use or during transit. Furthermore, a Certificate of Conformance is often included, providing traceability and verification of the block's precise specifications.

Key Selling Points:

• Ensures Accurate Shear Wave Calibration: Essential for reliable ultrasonic inspection results.

• Complies with Industry Standards: Meets the requirements of AWS and ASTM E164 for shear wave calibration.

• Enhanced Durability: Nickel plating provides superior corrosion and wear resistance.

• Secure Storage and Transport: Includes a hard case for optimal protection.

• Provides Traceability: Often includes a Certificate of Conformance for assured accuracy.

Benefits:

• Reliable Inspection Outcomes: Properly calibrated equipment leads to more accurate flaw detection and sizing.

• Meets Regulatory Requirements: Ensures adherence to key industry standards for ultrasonic testing.

• Long-Term Investment: Durable construction and protective plating extend the lifespan of the block.

• Convenient Handling: The hard case makes storage and transportation safe and easy.

• Demonstrates Quality Assurance: The Certificate of Conformance provides documented proof of accuracy.

Applications:

• Precise calibration of ultrasonic flaw detectors for shear wave examinations.

• Verification of probe index point and beam path distance during setup.

• Essential for weld inspections performed according to AWS and ASTM guidelines.

• Quality assurance processes in manufacturing and fabrication.

• Training and educational purposes in ultrasonic testing.
