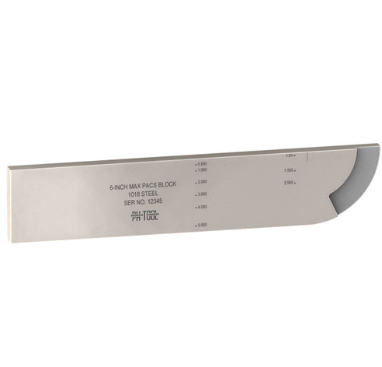

PH Tool — 6" MAX PACS® Calibration Block (1018 Steel)
Phased Array Ultrasonic Reference Block for PAUT Calibration & Verification SKU: MAX.PACS.ICSOverview
The PH Tool 6" MAX PACS® Block is a precision ultrasonic reference standard designed for phased array ultrasonic testing (PAUT) calibration, setup, and system verification. Manufactured from 1018 steel, this block provides reliable acoustic response for professional inspection workflows involving weld inspection, flaw detection, and advanced ultrasonic applications.
Designed as a MAX PACS® calibration standard, this block supports calibration and performance checks for phased array probes, wedges, scanners, and ultrasonic flaw detection systems. Its 6-inch configuration provides a practical reference geometry for verifying beam response, sensitivity, focusing, and inspection setup accuracy.
Built for demanding NDT environments, the MAX PACS® block is ideal for calibration laboratories, field inspection teams, training programs, and industrial QA/QC workflows requiring repeatable and dependable phased array calibration standards.

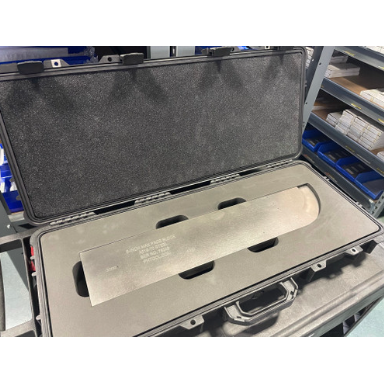

What's Included
| Item | Details |
|---|---|
| Calibration Block | 6" MAX PACS® block, 1018 steel |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 10.0 in |
| Width | 8.0 in |
| Height | 4.0 in |
| Dimensions (L × W × H) | 10.0 × 8.0 × 4.0 in |
| Weight | 8.0 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Phased array calibration block |
| Model | MAX PACS® |
| Size | 6 in |
| Material | 1018 steel |
| Application | PAUT calibration and verification |
| Manufacturer | PH Tool |
| SKU | MAX.PACS.ICS |
Performance Features
PAUT Calibration Support
Designed for phased array ultrasonic testing setup and verification.
1018 Steel Construction
Provides dependable acoustic response for industrial ultrasonic calibration workflows.
MAX PACS® Reference Design
Supports advanced inspection setup, sensitivity checks, and beam performance verification.
Repeatable Calibration Results
Helps ensure consistent ultrasonic system performance and reliable inspection data.
User-Friendly Design
- Practical 6" calibration block format
- Easy to use for routine PAUT setup checks
- Suitable for field, shop, and laboratory workflows
- Designed for efficient ultrasonic calibration procedures
Built for Industrial Environments
- Durable steel construction for repeated use
- Reliable performance in demanding inspection programs
- Suitable for professional PAUT and UT workflows
- Designed for calibration, training, and QA/QC applications
Compatibility
Compatible with:
- Phased array ultrasonic flaw detectors
- PAUT probes and wedges
- Conventional ultrasonic flaw detectors
- Scanner and encoded inspection setups
- Calibration and verification procedures
Ideal Applications
- Phased array calibration
- PAUT system verification
- Weld inspection setup
- Beam sensitivity and performance checks
- NDT training and certification
- Industrial QA/QC and field inspection programs
About PH Tool
PH Tool is a leading manufacturer of ultrasonic calibration standards and reference blocks, providing precision-engineered solutions for NDT inspection, calibration, and training. Their products are trusted worldwide for accuracy, durability, and compliance with professional ultrasonic testing requirements.
