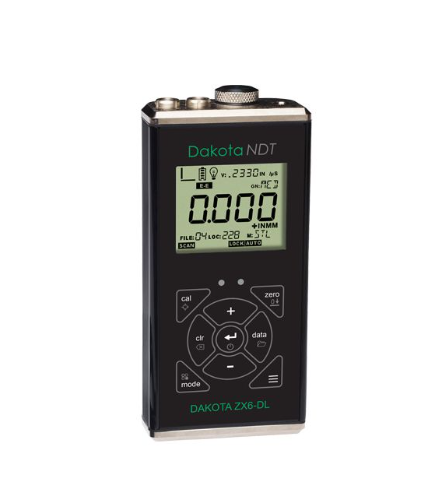

The Dakota NDT ZX-6DL Ultrasonic Thickness Gauge is a robust and highly capable instrument designed for accurate and reliable material thickness measurements in challenging industrial environments. As part of Dakota's esteemed ZX series, this gauge offers a performance solution built to withstand the roughest conditions, combining essential features with advanced capabilities, including a crucial data logging function.

A key strength of the ZX-6DL is its dual measurement modes: Pulse-Echo (P-E) for detecting pits and flaws, and Echo-Echo (E-E) for accurate measurements directly through coatings like paint and epoxy, eliminating the need for coating removal. This "Thru-Paint" capability significantly enhances inspection efficiency and reduces preparation time. The gauge features an impressive measurement range, from 0.025 to 36.00 inches (0.63 to 914.4 mm) in P-E mode, and 0.100 to 6.00 inches (2.54 to 25.40 mm) in E-E mode (base metal), with a high resolution of 0.001 inches (0.01 mm).

The ZX-6DL is equipped with an integrated datalogger that can store up to 10,000 readings in 40 files, each containing 250 readings. This allows for efficient organization and subsequent transfer of data to a PC via USB-C connectivity for analysis and reporting using Dakota's software. The gauge features an intuitive membrane keypad resistant to water and petroleum products, a clear multi-function LCD display with adjustable backlight, and a tough IP65-rated extruded aluminum body with nickel-plated end caps, ensuring durability and environmental sealing. It operates on two standard AA batteries, offering excellent battery life. The instrument comes with a standard 1/4" 5 MHz Hi-Damp dual element transducer (T-102-2700), couplant, batteries, a manual, and a hard-plastic carrying case.

Key Selling Points:

• Dual Measurement Modes (P-E & E-E): Offers both flaw/pitting detection and accurate "Thru-Paint" measurements without removing coatings.

• Integrated Datalogger: Stores up to 10,000 readings in structured files for comprehensive record-keeping.

• USB-C Connectivity: Enables easy data transfer to PC for analysis and reporting.

• Robust & Durable Construction: IP65-rated, impact-resistant, and environmentally sealed for harsh industrial environments.

• Wide Measurement Range & High Resolution: Capable of measuring a broad spectrum of material thicknesses with precision.

• User-Friendly Interface: Intuitive keypad and clear LCD display with adjustable backlight.

• Long Battery Life: Powered by standard AA batteries for extended field use.

• Versatile Applications: Ideal for corrosion & pitting, tube & pipe, tanks, boilers, and glass inspections.

• Complete Kit: Includes standard transducer, couplant, batteries, manual, and hard carrying case.

• 5-Year Limited Warranty: Demonstrates confidence in product quality and reliability.

Benefits:

• Increased Efficiency: Measure through coatings, saving time and effort on surface preparation.

• Comprehensive Data Management: Store and manage large volumes of inspection data with ease, facilitating trend analysis and reporting.

• Reliable Performance in Harsh Conditions: Designed to withstand challenging field environments, ensuring consistent operation.

• Accurate and Repeatable Results: Provides precise thickness measurements for critical quality control and maintenance decisions.

• Cost-Effective Operation: Uses readily available AA batteries and offers long-term durability.
