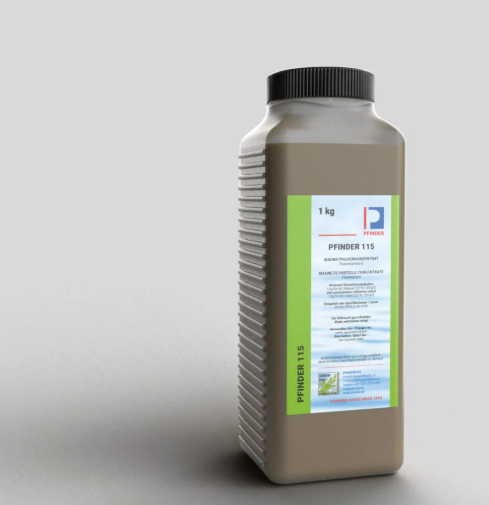

PFINDER 115 is a water-suspendable concentrate of fluorescent magnetic particles with special additives for magnetic particle testing. PFINDER 115 indicates surface defects of magnetizable materials under UV-light (365 nm).

The concentrate PFINDER 115 has to be stirred in water. An even dispersion of the particles will be obtained very quickly.

PFINDER 115 provides an extra-high content of powder.

Technical Details:

Suspendable in water

• Excellent sharp, quick and stable indications

• Low background fluorescence

• With effective corrosion protection

APPLICATION

The ideal use concentration may vary according to magnetisation strength, surface conditions, after-magnetisation terms and flushing time.

Therefore following values should only be understood as an indication:
1 kg PFINDER 115 for 40 l to 100 l water (2,5 % to 1,0 %).
The capability of the magnetic particle suspension should be checked regularly by means of own reference pieces or e.g. reference block 1 according EN ISO 9934-3.

YOUR GREEN NDT BENEFITS

| Odourless
| Free of sec. amines, nitrites and halogens

YOUR HANDLING + COST SAVING BENEFITS

| Brilliant, quick and stable indications
| Low background fluorescence
| With effective corrosion protection

APPROVALS & CONFORMITIES

The product conforms to these specifications / is suitable for the use according to:

EN ISO 9934-2 | ASME V Art.7 |
ASTM E1444 | ASTM E709 |
AS 4792 | AMS 304

PACKAGING

1-l-bottle | 5-l-canister
These packages are on stock and instantly available. Other packages on demand.

SHELF-LIFE & STORAGE

2 years
Storage between + 5 °C and + 45 °C.
Shake or stirr well before use!
