The Curtis TYPE DSC Calibration Block is an indispensable reference standard for ultrasonic testing professionals utilizing shear wave transducers. Specifically designed for distance and sensitivity calibration, this block is a crucial tool for ensuring accurate and reliable flaw detection in a variety of materials and applications.

Manufactured by Curtis Industries, a respected name in non-destructive testing calibration standards, this DSC block is engineered to meet or exceed recognized industry specifications such as ASTM E164 and AWS D1.1/D1.1M. Its precise geometry incorporates key features necessary for comprehensive shear wave transducer calibration. These typically include defined radii (e.g., a 1.0" radius opposite a 3.0" radius), a calibration notch on the larger radius (e.g., 0.375" deep with a 0.032" radius width), a designated 0° reference point, and markings corresponding to a side-drilled hole (e.g., 0.125" diameter) at common shear wave angles such as 45°, 60°, and 70°.

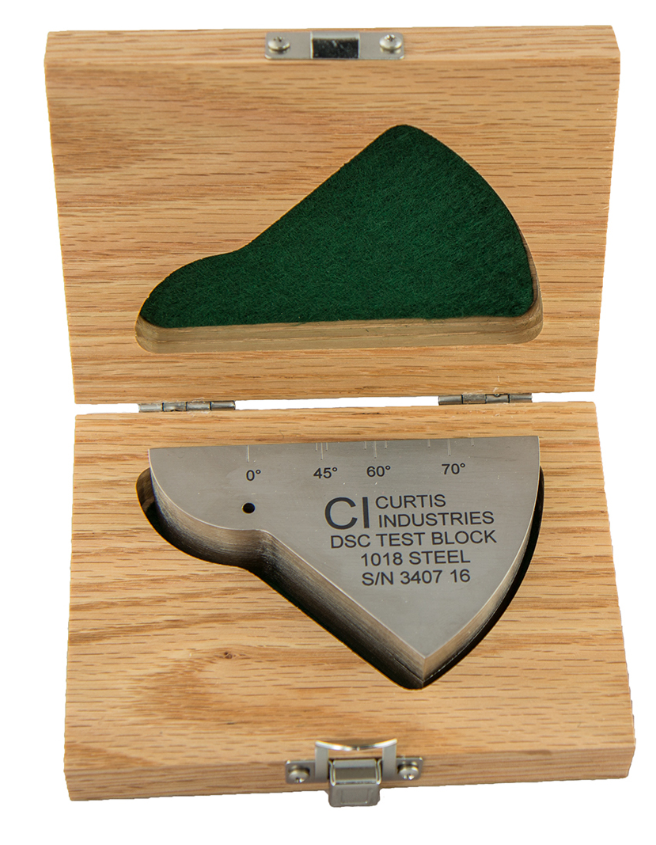

This offering includes a durable wood case, providing robust protection for the calibration block during storage and transportation. This ensures that the precision-machined surfaces remain free from damage, maintaining the block's accuracy and extending its service life as a reliable calibration standard.

Key Selling Points:

• Specifically Designed for Shear Wave Calibration: Meets the requirements for distance and sensitivity adjustments of angle beam transducers.

• Complies with Industry Standards: Manufactured in accordance with ASTM E164 and AWS D1.1/D1.1M specifications.

• Features Essential Calibration Geometries: Includes radii, a notch, and angle reference points for comprehensive calibration.

• Durable Wood Case for Protection: Ensures secure storage and transport, preserving the block's accuracy.

• Quality Manufacturing by Curtis Industries: Guarantees dimensional accuracy and reliable performance.

• Critical for Accurate Angle Beam Inspections: Enables precise calibration for dependable flaw detection.

Benefits:

• Ensures Precision in Shear Wave Testing: Allows for accurate calibration of critical transducer parameters, leading to reliable inspection results.

• Supports Adherence to Testing Standards: Helps meet the calibration requirements of various industry regulations and codes.

• Provides a Long-Lasting and Protected Standard: The wood case safeguards the block, ensuring its continued accuracy.

• Facilitates Efficient Calibration Procedures: Clearly defined features simplify the calibration process for shear wave transducers.

Applications:

The Curtis TYPE DSC Calibration Block is widely used for calibrating shear wave transducers in diverse ultrasonic testing applications, including:

• Inspection of welds in various fabrication and construction projects.

• Detection and sizing of subsurface flaws using angle beam ultrasonic techniques.

• Establishing and verifying sensitivity levels for shear wave examinations.

• Accurate determination of the refracted angle of angle beam probes.

• Training and qualification of ultrasonic testing personnel in shear wave techniques.

The Curtis TYPE DSC Calibration Block with Wood Case is an indispensable tool for any professional performing ultrasonic inspections with shear wave transducers, providing a reliable, accurate, and protected standard for ensuring the quality and integrity of their non-destructive testing procedures.
