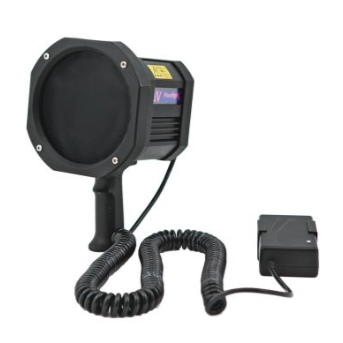

Labino — BB Helios Mains Power Handheld UV-A Inspection Light
9-LED UV-A Inspection Lamp, Approx. 8,500 µW/cm², 10.8 in Beam
SKU: L1033
Overview
The Labino BB Helios Mains Power is a professional handheld UV-A inspection light designed for fluorescent magnetic particle inspection (MPI) and penetrant inspection (FPI/LPI).
Equipped with 9 UV-A LEDs, the lamp delivers approximately 8,500 µW/cm² at 38 cm (15 in) with a wide beam measuring approximately 275 mm (10.8 in) above 1,200 µW/cm².
The mains-powered configuration provides continuous operation for inspection stations, workshops, laboratories, and other applications where a fixed power source is available.
What's Included
| Item | Details |
|---|---|
| BB Helios UV-A Lamp | 1 |
| Power Configuration | Mains Power |
| UV-A LEDs | 9 |
| Manufacturer | Labino |
| SKU | L1033 |
Key Features
9 high-performance UV-A LEDs
Initial UV intensity: approx. 8,500 µW/cm² at 15 in
Beam diameter above 1,200 µW/cm²: 275 mm / 10.8 in
Wide and uniform UV-A inspection beam
Continuous mains-powered operation
Designed for fluorescent MPI and penetrant inspection
White-light blocking filter
Suitable for bench, workshop, and production environments
Professional handheld design
Ideal for extended inspection sessions
Specifications
| Parameter | Details |
|---|---|
| Product Type | Handheld UV-A Inspection Light |
| Series | BB Series |
| Model | BB Helios |
| Power Source | Mains Power |
| UV-A LEDs | 9 |
| UV-A Intensity at 15 in | ≈ 8,500 µW/cm² |
| Beam Size >1,200 µW/cm² | Ø 275 mm / 10.8 in |
| Inspection Method | Fluorescent MPI / FPI |
| Manufacturer | Labino |
| SKU | L1033 |
Ideal Applications
Fluorescent Magnetic Particle Inspection (MPI)
Fluorescent Penetrant Inspection (FPI/LPI)
Weld inspection
Aerospace inspection
Automotive inspection
Pipeline inspection
Manufacturing QA/QC
Fabrication inspection
Component inspection
Inspection benches and workstations
Box Dimensions & Shipping Weight
| Parameter | Estimated |
|---|---|
| Box Dimensions (L × W × H) | 15 × 11 × 7 in |
| Shipping Weight | 5.0 lb |
Note: Box dimensions and shipping weight are estimated for inventory and shipping purposes.
About Labino
Labino manufactures professional UV-A inspection lights and NDT equipment for fluorescent penetrant and magnetic particle inspection across aerospace, manufacturing, oil & gas, automotive, and industrial applications.
