NM01ND4000

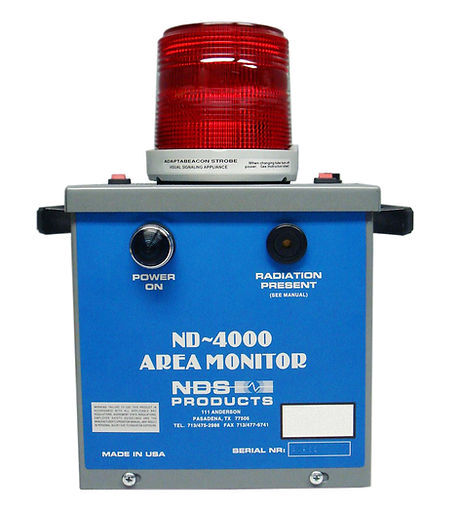

The NDS Products ND-4000 Portable Whole Area Monitor is a crucial safety device designed for continuous, autonomous monitoring of gamma and X-ray radiation levels. This battery-powered unit provides immediate alerts through both a highly visible warning light and a distinct audible alarm when radiation exceeds user-defined safety thresholds.

Engineered for rapid deployment in diverse environments where radiation hazards may exist, the ND-4000 eliminates the need for external power, offering unparalleled portability for establishing temporary or mobile monitoring zones. Its robust construction ensures reliable performance in demanding industrial settings.

Key Selling Points:

• Autonomous and Portable: Battery-powered for flexible placement in any location requiring monitoring.

• Comprehensive Area Surveillance: Continuously monitors radiation levels within a designated zone.

• Immediate Visual Warning: Features a high-visibility warning light for clear hazard indication.

• Distinct Audible Alert: Emits a readily noticeable sound when radiation levels are elevated.

• User-Adjustable Alarm Threshold: Allows customization of alert levels to meet specific safety protocols.

• Reliable Radiation Detection: Utilizes an energy-compensated Geiger-Müller (GM) tube for accurate gamma and X-ray monitoring.

• Durable and Rugged: Built to withstand the rigors of industrial use.

Benefits:

• Enhances Personnel Safety: Provides immediate and clear warnings of potential radiation hazards.

• Facilitates Rapid Deployment: Can be quickly set up in critical monitoring locations.

• Enables Uninterrupted Monitoring: Battery operation ensures continuous surveillance without power constraints.

• Provides Clear and Unambiguous Alerts: Both visual and audible warnings ensure personnel are effectively informed.

• Adaptable to Specific Safety Needs: User-adjustable thresholds allow for customized alert settings.

Applications:

• Establishing safety perimeters at radiography and NDT inspection sites.

• Monitoring temporary radiation work zones.

• Critical for emergency response scenarios involving radioactive materials.

• Overseeing radiation levels in storage facilities for radioactive sources.

• Defining safety boundaries in medical and industrial facilities utilizing radioactive materials.




Technical Details:

-Portable 12V DC Area Monitor with Battery Charger
-Standard trip point at 2 mR/hr
-Audio piezo alert
-Large red strobe warning light
-17 amp hour battery housed in monitor case
-May be used while battery charger is plugged in
-Green power indicator
-Halogen quenched energy compensated -GM tube, Gamma and X-Ray from 80-2000 KeV +/- 20%
-Power On/Off switch
-Audio On/Off switch
-NEMA 3R case 12" H x 11" W x 9" D
-Weight 25 pounds
-Operating Temperature: -20 to 50 °C (-4 to 122 °F), Humidity: Non-Condensing 95%
-Available with 120 or 220 AC charger
