NM01QW5045D

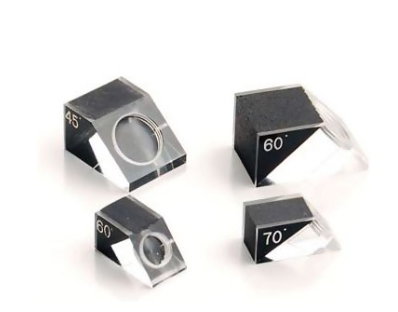

The DAKOTA NDT 45 Degree 1/2" Wedge is a precision-engineered accessory designed for seamless integration with Dakota NDT's Quick Change (QC) series ultrasonic transducers featuring a 1/2 inch diameter. This wedge is specifically engineered to facilitate advanced angled beam ultrasonic testing.

This wedge accurately refracts the ultrasonic beam emitted by a compatible QC transducer at a versatile 45-degree angle (calibrated for steel; the actual refracted angle may exhibit minor variations depending on the acoustic velocity of the material under inspection). This widely used angle in ultrasonic non-destructive testing is particularly effective in the critical examination of welds, where it excels at detecting common weld defects such as lack of fusion, incomplete penetration, and certain orientations of cracks.

Engineered for optimal compatibility with Dakota NDT's Quick Change (QC) probe system, this wedge incorporates a specialized interface that enables rapid, secure, and tool-free attachment and detachment of 1/2 inch diameter QC transducers. This quick change capability significantly enhances inspection efficiency, particularly in applications requiring multiple inspection angles or frequent transducer changes.

Manufactured by Dakota NDT, a recognized and respected leader in the field of non-destructive testing (NDT) equipment, this 45-degree wedge is constructed to ensure consistent and reliable acoustic coupling between the transducer and the test surface. Its durable design is built to withstand the demands of industrial inspection environments.

Key Selling Points:

• Specifically for Dakota NDT QC Probes: Ensures perfect compatibility and quick, tool-free changes with 1/2" QC transducers.

• Precise 45-Degree Refraction Angle: A versatile angle ideal for detecting a wide range of common weld defects and material discontinuities.

• Optimized Acoustic Coupling: Ensures efficient transmission of ultrasonic energy for clear and reliable signals.

• Durable Construction: Built to withstand the rigors of industrial inspection environments.

• Manufactured by Dakota NDT: A trusted leader in high-quality ultrasonic testing equipment.

• Enhances Inspection Efficiency: Quick change design minimizes downtime during transducer swaps.

Benefits:

• Efficiently Inspects for a Wide Range of Defects: The 45-degree angle is effective for detecting many common flaw types in various orientations.

• Increases Inspection Speed: The quick change mechanism allows for rapid transducer changes, saving valuable time.

• Ensures Reliable Ultrasonic Performance: Optimized acoustic coupling provides strong and clear signals.

• Provides a Secure and Stable Connection: The QC interface ensures a reliable link between the transducer and the wedge.

• Built to Last: Durable construction ensures longevity in demanding applications.

Applications:

This 45 Degree 1/2" Wedge for QC Probe is ideal for ultrasonic testing applications, including:

• Comprehensive weld inspection for detecting lack of fusion, incomplete penetration, and various crack orientations.

• Inspection of components with geometric constraints.

• Applications requiring rapid changes between different inspection angles.

• General flaw detection where a versatile mid-range angle is beneficial.

• Quality control processes in various manufacturing and fabrication industries.

The DAKOTA NDT 45 Degree 1/2" Wedge for QC Probe is an essential accessory for NDT professionals utilizing Dakota NDT's Quick Change (QC) probe system for comprehensive and efficient material evaluation, particularly when investigating a wide range of potential flaws within the test piece.
