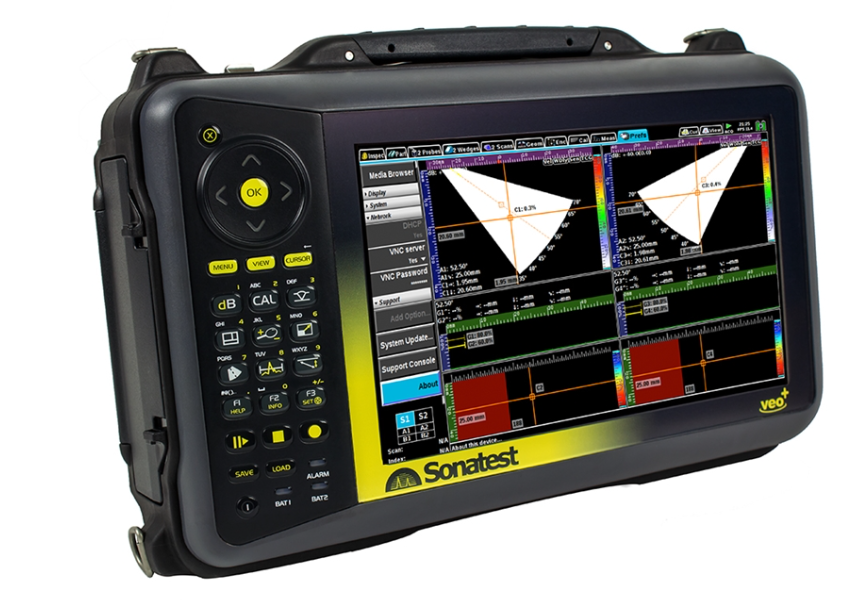

Sonatest Veo+ 16:128PR / 2UT:PR BNC Customer Kit
SKU: VEO+16128PRBNC
A portable phased array, TOFD and conventional UT instrument with 16:128 phased array channels, two UT channels, 128 GB of SSD storage and a rugged IP66 enclosure, supplied as a complete field kit with TOFD software and a Storm case.
| 16:128PA pulser/receiver plus 2 UT | 128 GBSSD, no file size limit | 10.4"1024 × 600 display | IP66MIL-STD-810G design |
The Sonatest Veo+ is a smart, future-proof portable phased array instrument for composite parts, steel and austenitic stainless welds, structures and corrosion monitoring. This 16:128PR configuration addresses up to 128 elements for multi-probe, multi-scan inspections, while two conventional UT channels with a 400 V pulser handle TOFD and standard flaw detection.
Supplied as a complete customer kit with TOFD software, UTstudio+ analysis software, batteries, power supply and a Storm transport case, it's ready for weld inspection, crack detection, corrosion mapping and aerospace work straight out of the box. It's backed by a 2-year warranty.
Key Features
 | Superior digital technologyThe Veo+ architecture delivers high data throughput, enhanced digital signal processing and Sonatest's ActiveEdge pulser technology for exceptional signal-to-noise ratio. A 64-bit Linux system and 128 GB SSD record huge acquisitions in a single file, with up to 1,024 focal laws and 0.1° angle resolution. |
Phased array, TOFD and UT in oneThe 16:128 configuration can drive a pair of 64-element probes for single-pass weld coverage. The two UT channels, with a 400 V ActiveEdge pulser and 4 BNC connectors, add TOFD and conventional UT scans to the same inspection. TOFD software is included in this kit. |  |
Built for the Field
Onboard live 3D scan plan
Choose from a range of weld geometries, place probes on the part at precise locations and add sound paths with skips to confirm coverage. The 3D scan plan then becomes a clear reference for your inspection report.
Guided setup wizards
Wizards for sound velocity, wedge delay, TCG, DAC, TOFD setup and encoder calibration come standard, with integrated help and optimization tips that keep the instrument performing at its best.
Remote control and connectivity
With WiFi, Gigabit Ethernet and Sonatest's Xpair software, the Veo+ can be fully controlled from a PC over the network. The Xpair Cloud option lets an expert anywhere in the world take over the instrument remotely.
UTstudio+ analysis software
Manage inspection configurations, analyze data and build detailed reports on your PC, with custom views, extra gates, measurement tools and color palettes for PA, TOFD and conventional UT data.
Rugged and field proven

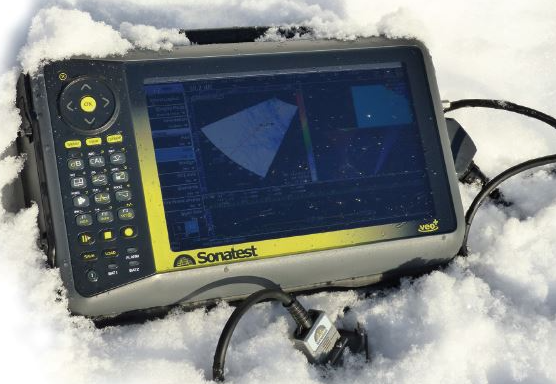

The enclosure is designed for IP66 and MIL-STD-810G and has been tested in the field for years. Hot-swappable batteries give about 6.6 hours of operation without shutting down.
Upgradeable in the field
Add the 32 pulser/receiver upgrade, FMC-TFM, phased array curved surface correction, CSV export or Xpair Cloud as software options when your work requires them.
Specifications
| General | |
| Manufacturer | Sonatest |
|---|---|
| Model | Veo+ |
| Configuration | 16:128PR phased array / 2UT:PR, BNC |
| SKU | VEO+16128PRBNC |

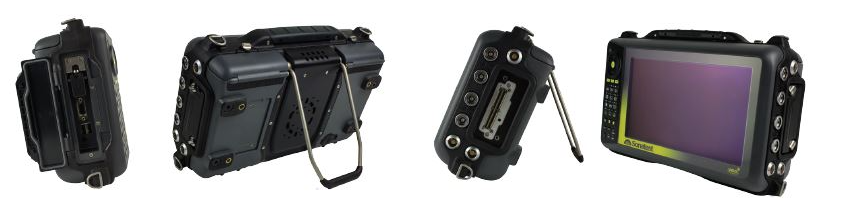

| Connectors | 1 × I-PEX 128-channel (PA); 4 × BNC (UT) |
| Warranty | 2 years |
| Shipping dimensions (estimated) | 559 × 457 × 254 mm (22.0 × 18.0 × 10.0 in) |
| Shipping weight (estimated) | 8.2 kg (18 lb) |
| Phased Array | |
| Pulsers / receivers | 16:128 (upgradeable to 32:128) |
| Gain range | 80 dB |
| Sampling | 125 MHz at 12-bit (16-bit processing) |
| System bandwidth | 0.2 to 23 MHz |
| Max PRF | 50,000 Hz |
| Pulse voltage | 100 to 50 V, ActiveEdge |
| Focusing | Natural, or constant depth, path or offset |
| Scan resolution | S-scan up to 0.1°; L-scan 1 element or double resolution |
| Max focal laws | Up to 1,024 beams |
| Measurement tools | Extraction box, 4 gates per A-scan, TCG, DAC and Split DAC |
| UT-TOFD | |
| Channels | 2 pulser/receivers (4 connectors); up to 2 scans (UT and TOFD) |
| Gain range | 100 dB |
| Sampling | 50, 100 or 200 MHz at 10-bit |
| System bandwidth | 0.2 to 18 MHz |
| Max PRF | 20,000 Hz |
| Pulse voltage | 400 to 100 V, ActiveEdge |
| Measurement tools | 4 gates per A-scan, TCG, DGS and Split DGS, DAC and Split DAC |
| System & Software | |
| Data storage | 128 GB SSD, no file size limit |
| Max points per A-scan | Up to 8,192, with sub-sampling to reduce file size |
| Operating system | Linux 64-bit, Intel Core CPU |
| Onboard tools | Live 3D scan plan, PDF auto-report, screen capture, PDF reader, integrated help |
| PC software | UTstudio+ analysis (included); Xpair remote control |
| Software options | 32 PR upgrade, FMC-TFM, PA curved surface correction, CSV export, Xpair Cloud |
| Calibration standards | ISO 18563 (EN 16392) and EN 12668 |
| Display & Ports | |
| Display | 10.4" wide LED-backlit LCD, enhanced sunlight readable, 1024 × 600 |
| Encoder | 2 axes: scan, index or clicker (LEMO 1) |
| GPIO (TTL) | Start, stop, index, reset, alarms, trigger (LEMO 1) |
| Communication | WiFi 802.11n, Gigabit Ethernet, 3 × USB 2.0 |
| Remote display | WiFi, Ethernet or VGA |
| Physical & Power | |
| Dimensions | 115 × 220 × 335 mm (4.52 × 8.66 × 13.19 in) |
| Weight | 4.54 kg (10 lb) without battery; 460 g (1 lb) per battery |
| Operating time | 6.6 hours, hot-swappable batteries |
| Power input | AC 110 to 240 V, 50/60 Hz |
| Operating temperature | -10°C to 40°C (14°F to 104°F); storage -20°C to 60°C (-4°F to 140°F) |
| Environmental rating | Designed for IP66 and MIL-STD-810G |
What's in the Box
- Sonatest Veo+ 16:128PR / 2UT:PR phased array flaw detector, BNC version
- TOFD software
- UTstudio+ software on USB memory stick
- Batteries
- Power supply
- Quick start guide and user manual
- Guarantee card (2-year warranty)
- Screen protector
- Carry strap
- Storm transport case
Contents can vary by package, so contact us to confirm what ships with your order.
