Met-L-Chek — VP-30 Washable Visible Penetrant

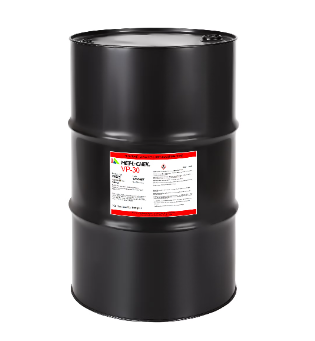

Visible Red Dye Penetrant, 55 Gallon Drum, Methods A & C
SKU: 29225-0055

Overview

Met-L-Chek VP-30 is a visible dye liquid penetrant designed for detecting surface-breaking discontinuities in suitable clean, nonporous materials. Its red visible indication system allows inspection under appropriate white-light conditions without requiring UV-A illumination.

VP-30 supports both Method A water-washable and Method C solvent-removable penetrant testing procedures. During inspection, the penetrant enters cracks, laps, seams, porosity, and other surface-open discontinuities through capillary action. After excess penetrant is removed and a compatible developer is applied, penetrant retained inside discontinuities bleeds back to the surface and creates clearly visible indications.

The 55-gallon bulk drum configuration is suitable for high-volume inspection departments, production penetrant lines, large fabrication facilities, maintenance operations, and other environments where frequent or continuous penetrant testing is performed.

What's Included

Note: Pumps, spray equipment, immersion tanks, drain stations, cleaners, removers, developers, inspection lighting, and other accessories are not included unless specified separately.

Box Dimensions & Shipping Weight (Estimated)

Actual shipping dimensions and weight may vary depending on drum construction, fill density, palletization, and transportation packaging.

Key Specifications

Inspection Methods

The selected penetrant dwell time, removal process, drying conditions, development time, and inspection lighting should follow the applicable written procedure.

Performance Features

Visible Red Indications
Produces high-contrast red indications that can be evaluated under suitable white-light conditions.

Method A Water-Washable Capability
Supports production-oriented inspection processes where controlled water washing is used to remove excess penetrant.

Method C Solvent-Removable Capability
Can also be incorporated into localized or field inspection procedures using a compatible solvent remover.

Bulk 55-Gallon Supply
Provides a practical volume for high-throughput inspection facilities and production penetrant systems.

Surface-Breaking Discontinuity Detection
Supports detection of cracks, laps, seams, surface porosity, leak paths, and other discontinuities open to the test surface.

Ready-to-Use Formulation
Designed for direct use without routine dilution or mixing.

Advantages of Bulk 55-Gallon Packaging

The 55-gallon configuration is well suited for facilities performing frequent or large-scale penetrant inspections.

Potential advantages include:

• Reduced frequency of chemical replenishment

• Suitable for production inspection lines

• Supports immersion-tank applications

• Practical for high-volume fabrication facilities

• Lower handling frequency compared with small containers

• Suitable for centralized dispensing systems

• Useful for multiple inspection stations

• Supports long-term consumable inventory planning

Bulk dispensing equipment should be chemically compatible with the penetrant formulation.

User-Friendly Design

• Ready-to-use visible penetrant

• No UV-A lamp required for indication evaluation

• Compatible with Method A and Method C workflows

• Suitable for immersion, spray, flow-on, or other approved application techniques

• Bulk drum supports large inspection programs

• Can be dispensed into smaller approved containers when required

• Supports field and production inspection environments

• Integrates into established liquid penetrant testing systems

Built for Industrial Environments

• Designed for professional liquid penetrant testing

• Suitable for manufacturing and fabrication plants

• Practical for production QA/QC departments

• Supports maintenance and asset-integrity programs

• Suitable for welds, castings, forgings, and machined components

• Bulk format supports repeated and high-volume inspections

• Can be incorporated into automated or semi-automated penetrant lines

• Intended for use according to documented inspection procedures

Application Guidelines

Surface Preparation

• Remove paint, scale, rust, grease, oil, and other contamination as required

• Clean the inspection area thoroughly

• Allow the surface to dry completely

• Ensure discontinuities are open to the surface before applying penetrant

Penetrant Application

VP-30 may be applied using an approved method such as:

• Immersion

• Spray

• Brushing

• Flow-on application

• Controlled bulk dispensing

Apply enough penetrant to completely wet the inspection area and allow the specified dwell time.

Method A — Water-Washable Removal

For Method A applications:

• Complete the specified penetrant dwell time

• Remove excess penetrant using controlled water washing

• Maintain water pressure and temperature according to the written procedure

• Avoid excessive washing

• Ensure penetrant is not removed from discontinuities

• Dry the component as required before developer application

Overwashing can reduce indication sensitivity.

Method C — Solvent-Removable Procedure

For Method C applications:

• Complete the required penetrant dwell time

• Remove initial excess penetrant using a clean, dry, lint-free cloth

• Apply an approved remover to a separate cloth

• Gently wipe the surface until excessive background penetrant is removed

• Avoid directly flooding the inspection surface

• Do not overclean

• Allow the surface to dry before applying developer

Developer Application

After excess penetrant removal:

• Ensure the surface is properly prepared and dry

• Apply a compatible developer

• Use a thin, uniform developer coating

• Allow the required development time

• Inspect the surface under appropriate white light

• Evaluate and document relevant indications

A white developer is typically used to provide strong contrast against the red visible penetrant.

Typical Discontinuities Detected

VP-30 can support detection of surface-breaking discontinuities such as:

• Cracks

• Fatigue cracks

• Grinding cracks

• Heat-treatment cracks

• Laps

• Seams

• Surface porosity

• Cold shuts

• Leak paths

• Surface-connected weld discontinuities

• Other defects open to the inspection surface

Liquid penetrant testing cannot detect discontinuities that are completely below the surface.

Compatibility

Compatible with:

• Method A water-washable penetrant procedures

• Method C solvent-removable procedures

• Compatible Met-L-Chek cleaners and removers

• Compatible nonaqueous wet developers

• Other approved visible penetrant developers

• White-light inspection equipment

• Visible-light meters

• Suitable ferrous metals

• Suitable nonferrous metals

• Production and field PT inspection programs

The penetrant, cleaner, remover, and developer should be approved for use together under the applicable inspection procedure.

Ideal Applications

• Weld inspection

• Casting inspection

• Forging evaluation

• Machined-component inspection

• Structural steel inspection

• Pipeline and pressure-component inspection

• Storage-tank inspection

• Automotive component testing

• Aerospace maintenance applications

• Fabrication QA/QC

• Production penetrant inspection

• Preventive maintenance

• Leak-path detection

• Surface-crack detection

• Surface-breaking porosity evaluation

• General industrial quality control

Bulk Handling and Storage

For 55-gallon drum use:

• Store the drum in a cool, dry, well-ventilated area

• Keep the container securely closed when not in use

• Use chemically compatible pumps and dispensing equipment

• Prevent contamination with water, dirt, or other inspection chemicals

• Clearly identify transfer containers

• Avoid introducing used penetrant back into clean bulk product

• Rotate inventory according to facility procedures

• Protect the drum from excessive heat and direct sunlight

• Use spill-control measures appropriate for bulk chemical storage

Safety and Handling

• Use with adequate ventilation

• Keep away from heat, sparks, flames, and ignition sources

• Avoid breathing vapors or spray mist

• Wear suitable gloves, eye protection, and protective clothing

• Use respiratory protection when required by workplace assessment

• Bond and ground bulk-transfer equipment when required

• Keep the drum tightly closed when not in use

• Prevent uncontrolled spills and releases

• Store according to applicable flammable or combustible liquid requirements

• Follow the current Safety Data Sheet and workplace procedures

• Dispose of contaminated materials and unused product according to applicable requirements

About Met-L-Chek

Met-L-Chek manufactures visible and fluorescent penetrants, developers, cleaners, removers, emulsifiers, magnetic particle materials, and related inspection chemistry for professional non-destructive testing. Its products support fabrication, manufacturing, aerospace, automotive, energy, maintenance, welding, and industrial quality-control applications.
