NM01T1023900

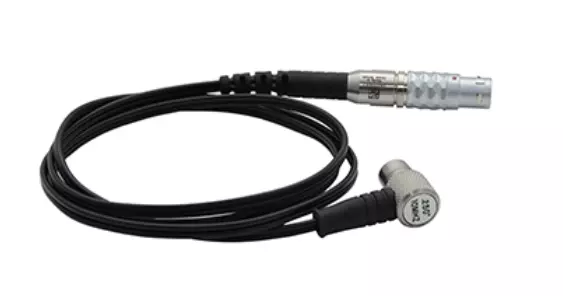

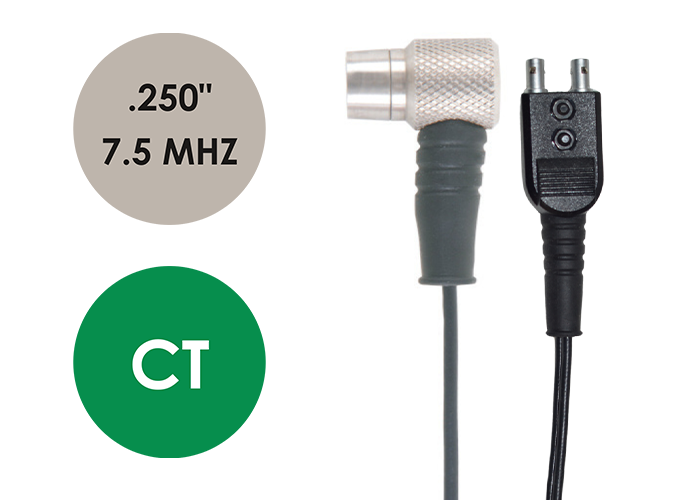

The Dakota NDT 7.5 MHz Dual Element Transducer is a compact and high-resolution probe designed for precise ultrasonic thickness measurements. Featuring a 1/4" (6.35 mm) diameter, this transducer operates at a frequency of 7.5 MHz, offering excellent near-surface resolution and the ability to detect small discontinuities.

The potted connector configuration provides a durable and sealed connection point, with the cable exiting from the entry side of the transducer for convenient operation in various inspection scenarios. The dual element design utilizes separate transmitting and receiving crystals, which improves signal-to-noise ratio, minimizes ring-down, and enhances the ability to measure thin materials and detect flaws near the surface.

Key Features:

• High Frequency (7.5 MHz): Ideal for high-resolution measurements and detection of small flaws.

• Compact Size (1/4" Diameter): Suitable for inspections in confined areas.

• Dual Element Design: Enhances near-surface resolution and signal quality.

• Durable Potted Connector: Provides a robust and sealed cable connection.

• Entry Side Cable Exit: Offers convenient cable routing during inspections.

Benefits:

• Precise Thickness Measurements: High frequency and dual element design ensure accurate readings, especially on thin materials.

• Excellent Near-Surface Resolution: Enables the detection of flaws close to the material surface.

• Improved Signal Quality: Dual element technology minimizes noise and enhances signal clarity.

• Durable and Reliable: Potted connector ensures long-lasting performance in demanding environments.

• Versatile Applications: Suitable for a wide range of thickness gauging and flaw detection tasks.

Applications:

• Thickness measurement of thin-walled materials.

• Corrosion monitoring and detection of pitting.

• Flaw detection in welds and critical components.

• Inspection of materials with rough or irregular surfaces.

• General-purpose ultrasonic thickness gauging requiring high resolution.
