NM01ADLMS54

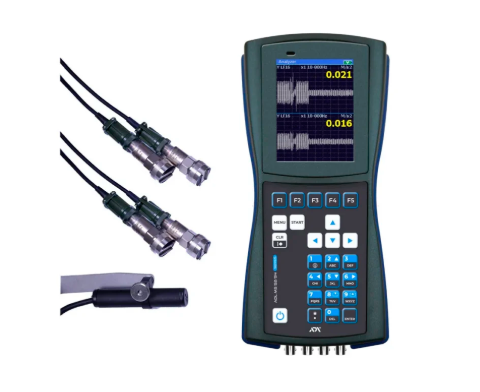

The Adelix ADL MS54 Expert Level Vibration Analyzer is a high-performance, four-channel instrument engineered for advanced vibration diagnostics and comprehensive condition monitoring of industrial machinery. Designed for expert users, this powerful analyzer provides simultaneous data acquisition from four channels, enabling in-depth analysis using techniques such as phase analysis, orbit plots, and cross-channel analysis.
With a wide frequency range (typically 1 to 25,000 Hz) and a high number of spectral lines in its FFT spectrum analysis, the ADL MS54 delivers exceptional detail for accurate identification of even the most complex fault frequencies and their harmonics. It measures a comprehensive suite of vibration parameters, including acceleration, velocity, and displacement (peak, RMS, peak-to-peak), along with specialized metrics for detailed fault analysis.
The ADL MS54 also features advanced capabilities for precision balancing on up to 8 correction planes with up to 16 measurement points, allowing for the effective correction of imbalance issues. Dedicated tools for phase analysis and detailed time waveform analysis provide further insights into machinery health. Orbit plots and centerline analysis enable the visualization of shaft movement for bearing condition assessment and rotor stability analysis.
For quick and objective evaluation of overall machine vibration severity, the ADL MS54 incorporates ISO 10816 evaluation. It boasts a large internal memory for storing extensive measurement data and supports the generation of professional reports using PC-based software. The analyzer features a user-friendly interface with a bright color display and intuitive navigation. Its rugged (IP54 rated) and portable design, along with a long-lasting battery, ensures reliable operation in demanding industrial environments. A tachometer input is included for accurate rotational speed measurement.
Key Selling Points for the Expert User:
Four-Channel Simultaneous Analysis: Enables advanced diagnostics for complex machinery issues.
High-Resolution FFT Spectrum Analysis: Provides exceptional detail for precise fault identification.
Comprehensive Measurement Parameters: Offers a wide range of data for in-depth analysis.
Advanced Balancing Capabilities: Facilitates precise correction of imbalance.
Powerful Diagnostic Tools: Includes phase analysis, time waveform analysis, and orbit plots.
Benefits:
Pinpoint Complex Faults: Advanced analysis capabilities enable the identification of intricate machinery problems.
Optimize Maintenance Strategies: Detailed data supports proactive and predictive maintenance programs.
Ensure Machine Reliability: Precise diagnostics contribute to smoother operation and reduced wear.
Comprehensive Machine Condition Assessment: Provides a holistic view of machinery health.
Efficient Data Management and Reporting: Streamlines the analysis and reporting process.
Applications:
The Adelix ADL MS54 is an ideal tool for expert vibration analysts across a wide range of industries, including:
Heavy Industry
Power Generation
Petrochemical
Manufacturing
HVAC and Building Services
Transportation
The Adelix ADL MS54 empowers expert users with the advanced features, accuracy, and reliability needed to tackle the most challenging vibration analysis tasks, ensuring the optimal performance and longevity of critical machinery.
Technical Details:
Parameter | Meaning |
Channel inputs | 4 |
Frequency range | 1… 25000 Hz |
Vibration measurement range: | 200 m/s2 |
Balancing | up to 8 correction planes, 16 measurement points |
Speed measuring range | 10…200000 rpm |
FFT Spectrum Resolution | 100, 200, 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 102400 lines |
Accuracy | Before 5% |
Memory | 4 GB |
PC interface | USB |
Display | Color VGA |
Battery | Li-Po rechargeable, up to 8 hours of continuous use |
Dimensions | 220 x 102 x 40 mm |
Measuring block weight | 470 g |
