NM01TSD510

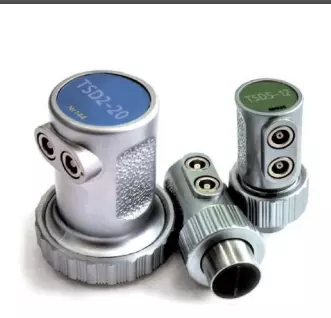

The OKO Double Element Straight Beam Contact Transducer is a high-performance ultrasonic probe specifically designed for accurate thickness measurements and flaw detection in various materials. This transducer operates at a frequency of 5 MHz and features a 10mm diameter active element, providing a good balance of penetration and resolution.

Its double element (also known as dual crystal) configuration offers improved near-surface resolution and enhanced performance when dealing with attenuative materials or irregular surfaces compared to single element transducers. The transducer is equipped with a durable ceramic face, ensuring good wear resistance and optimal coupling with the test material. The Lemo 00 connector provides a secure and reliable connection to compatible ultrasonic testing instruments.

Key Features:

• Double Element (Dual Crystal): Enhances near-surface resolution and performance on challenging materials.

• Frequency: 5 MHz - Offers a balance of penetration and resolution.

• Active Element Diameter: 10mm - Provides a suitable contact area for stable measurements.

• Straight Beam: Designed for transmitting and receiving ultrasonic waves perpendicular to the test surface.

• Ceramic Face: Ensures good wear resistance and optimal acoustic coupling.

• Connector Type: Lemo 00 - Provides a secure and reliable connection to instruments.

• Manufacturer: OKO NDT - A reputable manufacturer of ultrasonic testing equipment.

Benefits:

• Accurate Thickness Measurements: Ideal for precise gauging of material thickness.

• Improved Flaw Detection: Enhanced near-surface resolution for detecting small discontinuities.

• Versatile Applications: Suitable for a wide range of materials and inspection tasks.

• Durable Construction: Ceramic face ensures long-lasting performance.

• Reliable Connection: Lemo 00 connector provides a secure interface.

Applications:

• Thickness measurement in various industries.

• Corrosion surveys and detection of localized thinning.

• Inspection of materials with coatings or minor surface irregularities.

• Detection of laminations, voids, and inclusions parallel to the test surface.

• General-purpose ultrasonic testing requiring good resolution and penetration.
