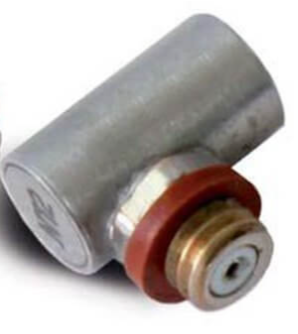

NM01TSB525M

The OKO-NDT Straight Beam Probe TSB is a high-frequency, single-element ultrasonic transducer designed for precise thickness measurement and flaw detection in a variety of materials. This probe is engineered for non-destructive testing (NDT) applications where the introduction of ultrasonic waves perpendicular to the test surface is required, particularly in situations demanding higher resolution.

Operating at a frequency of 5 MHz, this probe offers excellent resolution, making it ideal for detecting small flaws and accurately measuring thin materials. The 0.250" (quarter-inch) diameter active element provides a focused ultrasonic beam, ensuring precise data acquisition and minimizing beam spread.

The Side MD connector ensures a secure and reliable connection to ultrasonic testing equipment, minimizing signal loss and maintaining signal integrity. The "Side" designation indicates the connector is located on the side of the probe, offering flexibility in probe placement and handling in confined spaces.

Manufactured by OKO-NDT, a reputable provider of NDT equipment, the Straight Beam Probe TSB is built to exacting standards, ensuring durability and reliability in demanding industrial environments.

Key Features and Benefits:

• 5 MHz Frequency: Provides excellent resolution for detecting small flaws and measuring thin materials.

• 0.250" Diameter Active Element: Offers a focused ultrasonic beam for precise data acquisition.

• Single Element Design: Simplifies operation and provides reliable performance.

• Side MD Connector: Ensures a secure and reliable connection, with flexibility in probe placement.

• OKO-NDT Quality: Manufactured by a trusted provider of NDT equipment.

Applications:

• Thickness Measurement: Accurate measurement of thin materials.

• Flaw Detection: Detecting small flaws perpendicular to the test surface in various materials.

• Lamination Detection: Detecting delaminations and voids in composite materials.

• Corrosion Monitoring: Detecting and measuring corrosion in materials.

• General NDT: Various applications requiring high-resolution straight beam ultrasonic testing.

Technical Details:

• Frequency: 5 Mhz

• Element Diameter: 6mm, 0.250 in

• O.D.:  8mm, 0.312In

• Type of Case: Stainless Steel

• Connector Type: Microdot

• Connector Side: Top, Side
