NM03A1519STRAND
Out of stock
Tags:

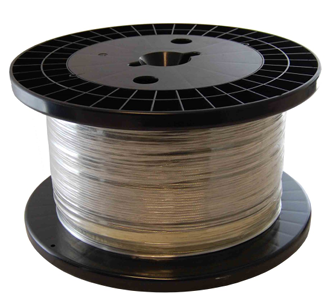

80/20 Nickel/Chrome heater core wire (19 strand) 500m roll
$2,159.00
Product Details
Heater core wire for the repair and manufacture of ceramic pad heating elements.
For heat treatment applications where the ceramic pad heating elements are required to operate at temperatures up to 800C.
Technical Details:
- Core Wire Material: 80/20 Nickel Chrome (NiCr)
- Construction: 19 Strand wire made up of 18 x 0.523mm diameter strands around 1 x 0.57mm king wire
- Resistance 0.28 Ω per m ±5%
- Unit of measure 500m roll
- Weight of 500m roll 21kg
- Nominal chemical composition Ni:77.95%, Cr:19.20%, Si:1.50%, Fe:1.00
- Specific heat capacity at 800°C 0.63 kJ kg¯¹ K¯¹
- Thermal conductivity at 800°C 24 W m¯¹ K¯¹
- Melting point 1400°C
- Recommend maximum operating temperature 800°C
- Electrical resistivity at 20°C Ω 1.09 Ω mm²/m
- Thermal Expansion at 20°C to 750°C 16 x 10¯¹⁶K
Data Sheet:
