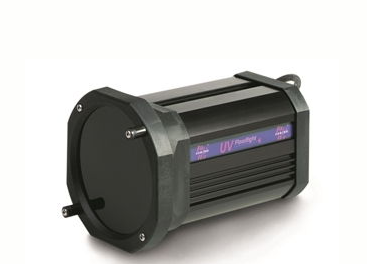

Labino — MPXL 135 Series TrAc Light PRO Floodlight
Battery-Powered High-Intensity UV-A Inspection Lamp with Wide Floodlight Beam
SKU: U1173
Overview
The Labino MPXL 135 Series TrAc Light PRO Floodlight is a professional battery-powered UV-A inspection lamp designed for fluorescent magnetic particle and penetrant inspection.
Its Floodlight configuration produces approximately 4,000 µW/cm² with a broad 250 mm (9.8 in) beam, providing wide UV-A coverage for inspection of larger components and surfaces.
The TrAc Light PRO uses a lightweight two-part design with a separate luminary and ballast/battery unit, reducing the weight carried in the inspector's hand during extended inspections.
Key Features
High-intensity UV-A Floodlight
Approx. 4,000 µW/cm² UV-A intensity
Wide 250 mm / 9.8 in beam
365 nm ±5 nm peak wavelength
35 W lamp power
Battery-powered operation
Approx. 2.5-hour battery runtime
Lightweight separate luminary design
IP65-rated protection
White-light blocking filter
UV-B-free output
Full operating power in approximately 5–15 seconds
Designed for professional fluorescent NDT inspection
Specifications
| Parameter | Details |
|---|---|
| Product Type | Handheld UV-A Inspection Lamp |
| Series | MPXL 135 Series |
| Model | TrAc Light PRO Floodlight |
| Lamp Power | 35 W |
| Peak Wavelength | 365 nm ±5 nm |
| UV-A Intensity | ≈ 4,000 µW/cm² |
| Beam Size >1,200 µW/cm² | Ø 250 mm / 9.8 in |
| Visible Light | <2 Lux / 0.2 fc |
| Power Source | Battery |
| Battery Runtime | Approx. 2.5 hours |
| Luminary Weight | 2.4 lb / 1.1 kg |
| Ballast Unit Weight | 5.3 lb / 2.4 kg |
| Ingress Protection | IP65 |
| Estimated Lamp Life | Approx. 2,000 hours |
| Manufacturer | Labino |
| SKU | U1173 |
Ideal Applications
Fluorescent Magnetic Particle Inspection (MPI)
Fluorescent Penetrant Inspection (FPI/LPI)
Weld inspection
Pipeline inspection
Aerospace inspection
Fabrication inspection
Manufacturing QA/QC
Large-component inspection
Field NDT applications
Box Dimensions & Shipping Weight
| Parameter | Estimated |
|---|---|
| Box Dimensions (L × W × H) | 18 × 14 × 10 in |
| Shipping Weight | 10.0 lb |
Note: Box dimensions and shipping weight are estimated for inventory and shipping purposes.
About Labino
Labino manufactures professional UV-A inspection lamps and NDT equipment for fluorescent penetrant and magnetic particle inspection across aerospace, oil & gas, manufacturing, automotive, and industrial applications.
