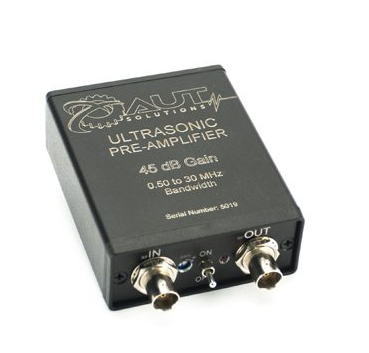

NM01PA45dB
This compact and versatile single-channel Radio Frequency (RF) pre-amplifier is specifically designed to amplify weak RF signals within the frequency range of 0.5 MHz to 30 MHz. Featuring an adjustable gain of up to 45 decibels (dB), this unit allows users to precisely boost signal levels to optimize the performance of receivers, spectrum analyzers, and other RF measurement equipment. The adjustable gain control provides the flexibility to enhance the detection of faint signals while minimizing the risk of overdriving subsequent stages.
A key feature of this pre-amplifier is its portability, enabled by its ability to operate on a standard 9-volt battery. This makes it an ideal solution for field applications, remote testing, or situations where access to mains power is limited. The low power consumption design ensures extended operation on a single battery.
For seamless integration into existing RF systems, the pre-amplifier is equipped with industry-standard BNC (Bayonet Neill-Concelman) connectors for both the input and output ports. BNC connectors offer a reliable, shielded connection with a convenient quick connect/disconnect mechanism, ensuring minimal signal loss and interference within the specified frequency range.
This pre-amplifier serves as a crucial building block in enhancing the sensitivity of RF receiving systems, compensating for signal attenuation in cables, and providing a necessary gain stage for accurate measurement and analysis of low-level RF signals across the HF and lower VHF bands. Its ease of use, adjustable gain, battery operation, and standard BNC connectivity make it a valuable tool for engineers, technicians, hobbyists, and anyone working with RF signals in the specified frequency range.
Key Features and Benefits:
Adjustable Gain (0 to 45 dB): Provides precise control over signal amplification to optimize performance.
Wide Frequency Range (0.5 to 30 MHz): Covers significant portions of the HF and lower VHF radio spectrum.
Single-Channel Operation: Dedicated amplification for a single RF signal path.
Portable Battery Power: Operates on a standard 9-volt battery for convenient field use.
BNC Connectors: Ensures reliable and shielded connections with easy connect/disconnect.
Improves Receiver Sensitivity: Boosts weak signals for better detection.
Compensates for Cable Loss: Amplifies signals to overcome attenuation in transmission lines.
Low Noise Design: Minimizes the introduction of unwanted noise into the amplified signal.
Compact and Lightweight: Easy to transport and integrate into various setups.
Applications:
Enhancing the sensitivity of radio receivers and scanners.
Boosting weak signals for spectrum analysis and RF measurements.
Compensating for signal loss in coaxial cables.
Providing a low-noise amplifier stage for antenna systems.
Use in amateur radio, electronics experimentation, and educational purposes.
Field testing and diagnostics of RF equipment.
Small, inexpensive, light weight, ultrasonic pre amplifier
Power: – 9VDC
Consumption: 30mA
Gain (Variable): 0 to 45dB
Input voltage: 0.50V p-p
Output voltage: to 1Vpk-pk
Bandwidth: 500KHz to 30MHz
Temperature range: -40°C to 60°C
Connectors: BNC Female
Battery Powered
Size: 3.75” x 2.75” x 1.25”
