NM01BUC1D510BC

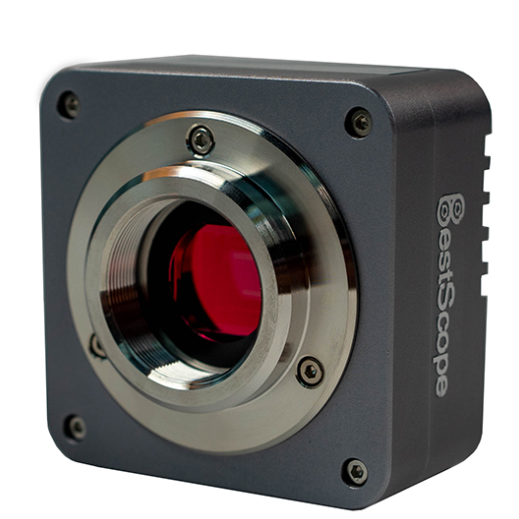

BUC1D-510BC (with IMX335 Sensor) cameras adopt ultra-high performance CMOS sensor as the image-capture device. USB2.0 is used as the data transfer interface.

BUC1D series cameras’ hardware resolutions ranges from 2.1MP to 12MP and come with the zinc aluminum alloy compact housing. BUC1D come with advanced video & image processing application ImageView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The BUC1D can be widely used in bright field light environment and microscope image capture and analysis with moderate frame rate.

Features

• Standard C-Mount camera with CMOS sensor;

• With hardware resolution among 2.10MP to 12MP;

• USB2.0 interface ensuring high speed data transmission;

• Integrated with large capacity memory chip ensures data synchronous transmission, low latency, high frame rate and stability;

• Compatible with Microsoft USB Video Class protocol and support the third-party software development;

• Built in Ultra-fine hardware ISP engine ensures high color restoration;

•  Support automatic/manual exposure switching, accurate exposure time control, and real-time adjustment of exposure target area;

•  Support automatic/manual/ROI white balance;

•  Support color adjustment/color mode selection/image flipping;

•  Support histogram adjust/flat field correction/dark field correction/video ROI;

• High performance MJPEG compression algorithm, combined with the unique decoding method of image restoration algorithm ensure highest frame rate of USB2.0 camera in the industry. The FPS for 5MP and 8MP can be up to 30FPS; the FPS for 12MP can be up to 15FPS;

• Comply with CE and FCC agreements;

• CNC aluminum alloy housing;

• With advanced video & image processing application ImageView;

• Providing Windows/Linux/Mac OS multiple platforms SDK;

• Very competitive pricing.
