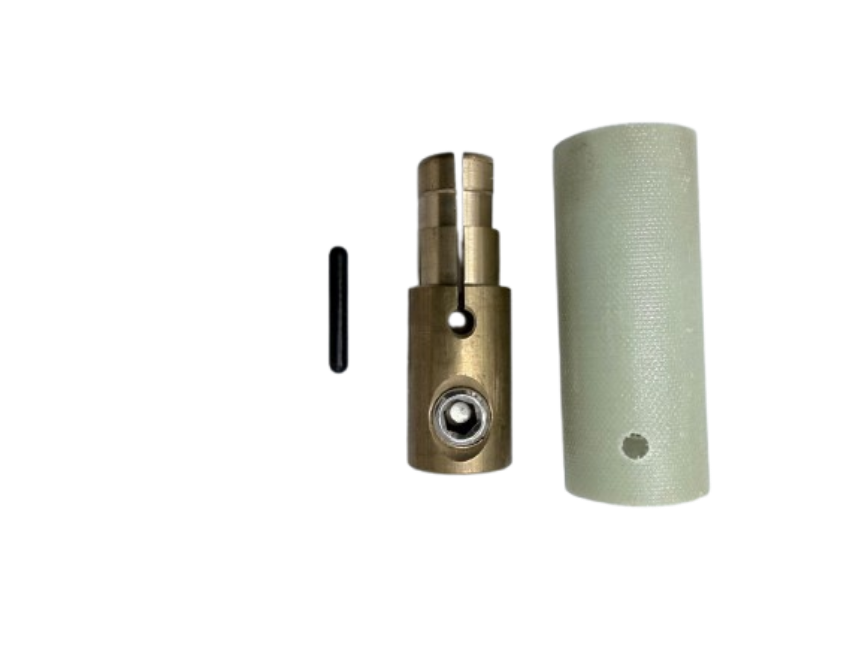

300 A Cam-Lock Male Connector Set with High-Temperature Sleeves
Heavy-Current Male Cam-Lock Connection Set for Compatible Industrial Inspection EquipmentSKU: R1601032
Overview
The 300 A Cam-Lock Male Connector Set, SKU R1601032, is designed for heavy-current electrical connections in compatible industrial inspection and magnetic particle testing equipment. The male Cam-Lock configuration provides a secure connection point for equipment using corresponding female Cam-Lock receptacles.
Rated for applications requiring connections up to 300 A, the set supports current transfer between compatible cables, power units, magnetizing equipment, and inspection accessories. The included high-temperature sleeves provide additional insulation and protection around the connector assemblies during industrial use.
This connector set is suitable for maintenance, replacement, and equipment-assembly applications where dependable high-current connections are required. Compatibility with the equipment connector size, cable capacity, polarity, and current rating should be confirmed before installation.
What's Included
| Item | Details |
|---|---|
| Connector Set | 300 A male Cam-Lock connector set |
| Connector Type | Male Cam-Lock |
| Current Rating | 300 A |
| Protective Components | High-temperature insulating sleeves |
| Application | Heavy-current equipment and cable connection |
| Installation Type | Cable-mounted connector assembly |
| SKU | R1601032 |
Note: The exact number of connectors and any additional installation hardware should be confirmed before ordering.
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 8.0 in |
| Width | 6.0 in |
| Height | 3.0 in |
| Dimensions (L × W × H) | 8.0 × 6.0 × 3.0 in |
| Weight | 2.0 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Heavy-current electrical connector set |
| Connector Style | Cam-Lock |
| Connector Gender | Male |
| Current Rating | 300 A |
| Sleeve Type | High-temperature protective sleeve |
| Connection Method | Insert-and-lock Cam-Lock connection |
| Installation | Compatible heavy-current cable assembly |
| Primary Use | Power and inspection-equipment connection |
| Equipment Compatibility | Systems using compatible female Cam-Lock receptacles |
| Intended Environment | Field, shop, fabrication, maintenance, and QA/QC |
| SKU | R1601032 |
Performance Features
300 A Current Capacity
Designed for industrial equipment and cable assemblies requiring a heavy-current connection rated up to 300 A.
Male Cam-Lock Configuration
Connects to a compatible female Cam-Lock receptacle using a secure insert-and-lock connection method.
High-Temperature Sleeves
Protective sleeves provide insulation around the connector assemblies and support use in elevated-temperature industrial environments.
Serviceable Cable Connection
Suitable for replacement, maintenance, or assembly of compatible heavy-current inspection cables.
Industrial Connection Support
Provides a practical connection option for equipment that requires removable, high-current cable connections.
User-Friendly Design
Cam-Lock format supports fast connection and disconnection
Male connector design fits compatible female receptacles
High-temperature sleeves help insulate the connector assemblies
Suitable for replacement and cable-assembly applications
Compact configuration supports field equipment transportation
Easy to integrate into compatible industrial cable systems
Reusable connection design supports routine equipment setup
Built for Industrial Environments
Designed for heavy-current industrial electrical connections
Suitable for field, shop, fabrication, maintenance, and QA/QC use
Protective sleeves support demanding operating conditions
Practical for inspection-equipment cable replacement and repair
Supports repeated connection and disconnection during equipment setup
Suitable for compatible magnetic particle inspection equipment
Intended for installation by qualified personnel
Connector condition should be inspected regularly for wear, heat damage, contamination, or loose cable termination
Compatibility
Compatible with:
Female Cam-Lock receptacles of the corresponding size and rating
Heavy-current industrial cable assemblies
Compatible magnetic particle inspection equipment
Magnetizing units using removable Cam-Lock connections
Current-carrying inspection leads
Compatible power-supply and accessory connections
Field and shop NDT equipment configurations
Replacement and maintenance cable assemblies
Cable gauge, connector dimensions, polarity, current rating, and equipment compatibility should be confirmed before installation.
Ideal Applications
Magnetic particle inspection equipment
Heavy-current inspection cables
Magnetizing-unit connections
Replacement cable assemblies
Industrial power connections
Field equipment maintenance
Cable repair and refurbishment
Fabrication and manufacturing equipment
NDT equipment service departments
Inspection-system setup and maintenance
QA/QC equipment support
Industrial electrical connection inventory
About the Product
The R1601032 300 A Cam-Lock Male Connector Set provides a practical replacement or assembly solution for compatible heavy-current inspection equipment. Its male Cam-Lock design and high-temperature protective sleeves support secure, insulated connections in field, shop, maintenance, and industrial NDT environments.
