PR-9 Field Calibration of all materials (one or two point option), High Speed Scanning, and Backlit Display, Dakota NDT SKU: Z-309-0001
Choose Quantity

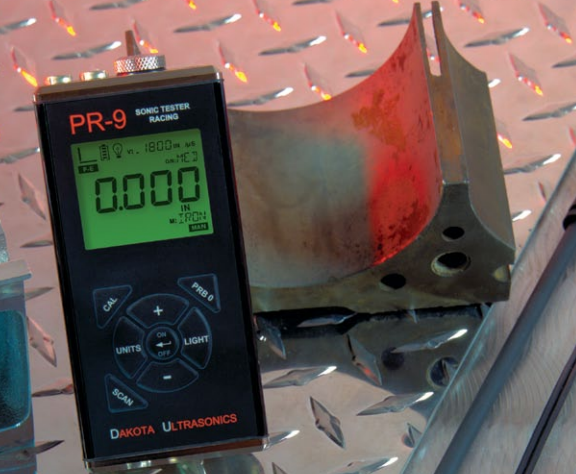

Dakota NDT PR-9 Sonic Tester, Ultrasonic Thickness Gauge for Racing and Engine Builders
SKU: Z-309-0001
A dedicated sonic tester for the racing industry, measuring cylinder walls, decks, head ports and chassis tubing, with 100 readings per second high-speed scanning, three calibration options and a backlit display.
| 100Readings per second scan | 0.001"Resolution (0.01 mm) | 3Calibration options | 5 yearsGauge warranty |
The Dakota NDT PR-9 is a precision ultrasonic thickness tester designed specifically for the racing industry. Engine builders, machine shops, car builders and sanctioning bodies use it to quickly and accurately measure and map cylinder walls, decks, head ports, chassis tubing, body panels and windshields.
Its dual-element probe can detect hidden corrosion or deterioration on the blind surface in the water jacket before any boring begins. Combined with 100 readings per second scanning and three calibration options for cast materials, the PR-9 helps builders make confident boring and sleeving decisions.
Key Features
Map a cylinder in seconds
High-speed scan takes 100 measurements per second. Drag the probe from the bottom of the cylinder up to the deck at a given clock position to find the minimum thickness, then switch scan off to locate the exact spot.
Find hidden water jacket corrosion
The dual-element probe detects corrosion and deterioration on the blind surface inside the water jacket, before any machining is done.
Three calibration options
Calibrate to any material with single-point, two-point or target velocity calibration for increased accuracy on cast iron, aluminum and other block and head materials.
Backlit display with repeatability bar
The backlit 4.5-digit LCD updates at 10 Hz and stays readable in dim shops and engine bays. A bar graph shows the repeatability of each measurement.
Racing-specific probes
Use Dakota dual-element transducers from 1 to 10 MHz, including dedicated cylinder wall and NHRA chassis tubing probes, each with a 4 ft cable.
Certified accuracy, made in the USA
Every PR-9 is factory calibrated, traceable to NIST and MIL-STD-45662A, and backed by a 5-year limited warranty.
Specifications
| General | |
| Manufacturer | Dakota NDT |
|---|---|
| Model | PR-9 Sonic Tester |
| SKU | Z-309-0001 |
| Instrument type | Dual-element ultrasonic thickness gauge for racing and engine building |
| Warranty | 5-year limited |
| Shipping dimensions (estimated) | 305 × 254 × 127 mm (12.0 × 10.0 × 5.0 in) |
| Shipping weight (estimated) | 1.8 kg (4.0 lb) |
| Measurement | |
| Standard range | 0.025 to 36 in (0.63 to 914.4 mm), depending on material and transducer |
| Automotive range | 0.050 to 1.500 in (1.27 to 38.1 mm) in cast materials |
| Resolution | ±0.001 in (0.01 mm) |
| Velocity range | 0.0120 to 0.7300 in/µs (305 to 18,542 m/s) |
| Calibration | Single-point, two-point or target velocity |
| High-speed scan | 100 readings per second, with minimum thickness display |
| Factory calibration | Traceable to NIST and MIL-STD-45662A |
| Transducer & Display | |
| Transducers | Dual element, 1 to 10 MHz, with 4 ft cable |
| Racing probe options | T-104-2120 for cylinder walls and decks; T-101-400 NHRA chassis tubing probe |
| Display | Backlit multi-function 7-segment, 4.5-digit LCD |
| Display update rate | 10 Hz |
| Repeatability indicator | Bar graph |
| Power | AA batteries |
What's in the Box
- Dakota NDT PR-9 sonic tester
- Standard dual-element transducer
- 4 oz couplant
- AA batteries
- Plastic carrying case
- Operation manual
Standard Dakota NDT kit. Contents can vary by package, so contact us to confirm which transducer ships with your order.
Complete your engine shop setup
Add the T-104-2120 cylinder wall probe or the T-101-400 NHRA chassis tubing probe, whichever isn't in your kit, plus extra couplant, a reference sample of your block material for calibration, and a protective rubber boot for small-body Dakota gauges.
Applications
The PR-9 is built for engine builders, race shops, car builders and sanctioning bodies.
| ✓ Cylinder wall thickness and mapping | ✓ Deck thickness |
| ✓ Head ports | ✓ NHRA chassis tubing inspection |
| ✓ Water jacket corrosion | ✓ Boring and sleeving decisions |
| ✓ Body panels | ✓ Windshields |
About Dakota NDT
Dakota NDT, an Elcometer company, manufactures high-quality industrial ultrasonic testing equipment for the petrochemical, aerospace, power generation and automotive industries. Its range includes corrosion and precision thickness gauges, flaw detectors, bolt tension monitors, transducers and accessories.
