NM01EMS1GA25

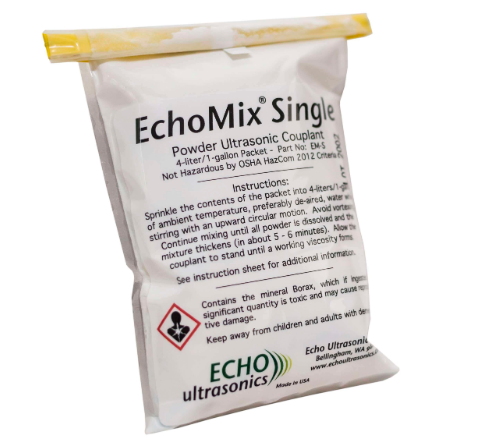

The EchoMix® Single Powder Couplant is a one-part, high-performance ultrasonic couplant designed for non-destructive testing (NDT) applications. It offers a fast-mixing, water-soluble solution that ensures strong acoustic coupling, enabling precise and reliable ultrasonic inspections for flaw detection, thickness gauging, and other critical testing procedures.

Unlike traditional couplants, EchoMix® Single comes in a pre-measured, easy-to-mix powder form, eliminating the need for complex mixing processes. Simply add water, stir for five minutes, and obtain a consistent, gel-based couplant that adheres effectively to vertical and overhead surfaces without running or thinning.

Perfect for field inspections and remote testing environments, this couplant provides exceptional corrosion resistance, excellent adhesion, and minimal residue, making it a top choice for industries such as aerospace, automotive, oil & gas, power generation, and manufacturing.

Key Features & Benefits:

• One-Part Powder Formula – Pre-measured for easy mixing with ambient water; eliminates the need for additional ingredients.

• Quick Mixing & Activation – Ready for use in just five minutes, ensuring minimal downtime during inspections.

• Strong Coupling & Adhesion – Creates a durable, continuous film that sticks well to vertical and overhead surfaces.

• Salt-Stable & Non-Thinning – Maintains effectiveness in marine, offshore, and high-salinity environments.

• Water-Soluble & Easy to Clean – Leaves minimal residue and can be easily wiped or rinsed away after testing.

• Low Halogen & Sulfur Content – Safe for use on sensitive metals and aerospace components.

• Blue Color Mixing Indicator – Ensures proper blending and visibility during application.

• Compact & Portable – Powder form allows for easy storage, transport, and long shelf life compared to traditional liquid couplants.

Applications:

The EchoMix® Single Powder Couplant is widely used in industrial and field-testing applications, including:

• Aerospace & Defense – Aircraft component inspections, weld analysis, and flaw detection.

• Oil & Gas Industry – Pipeline corrosion assessments, pressure vessel integrity checks, and weld inspections.

• Automotive & Manufacturing – Non-destructive testing of castings, forgings, and machined components.

• Power Generation & Infrastructure – Inspections of turbines, boilers, tanks, and steel structures.

• Marine & Offshore Testing – Ideal for saltwater environments, ensuring reliable results in high-humidity conditions.

Technical Specifications:

• Product Type: Powder-based Ultrasonic Couplant

• Mixing Ratio: 1 gallon (3.8 liters) per packet

• Operating Temperature Range:32°F to 120°F (0°C to 50°C)

• Viscosity:Medium Gel consistency

• Corrosion Protection: Contains mild short-term ferrous corrosion inhibitors

• Halogen & Sulfur Content: Less than 0.02% (200 ppm)

• pH Level:Approximately 9

• Storage & Shelf Life:Long-lasting in powder form; store in a dry environment

Packaging Details:

• Individual Packet Size:1-gallon (3.8 liters) yield per packet

• Carton Size:Contains 10 x 1-gallon packets

• Other Available Quantities:Cartons of 5, 10, 25, 50, or 100 packets
