NM01X0040024
WEDGE, SNAIL SHEAR WAVE, .625" X .625" 60 DEG, MODEL SNW6260, DAKOTA NDT ".625" X .625" 60 DEG ONLY"

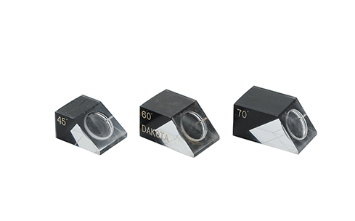

The Dakota NDT Snail Shear Wave Wedge, Model SNW6260, is a high-quality angle beam wedge meticulously engineered for use with compatible ultrasonic transducers in shear wave testing applications. This "snail"-style wedge features a contact surface of 0.625 inches by 0.625 inches (5/8" x 5/8") and is precisely angled to introduce a 60-degree refracted shear wave into the material under inspection.
Snail wedges, a common and reliable design often referenced in industry standards, are widely used in critical weld examinations and other applications where a specific angle of incidence is crucial for effective flaw detection and accurate characterization. The 60-degree angle provides a valuable perspective for identifying various types of weld discontinuities and material defects, often complementing inspections performed with 45-degree wedges. This wedge is constructed to deliver consistent and dependable performance when paired with appropriate shear wave transducers, ensuring reliable inspection outcomes.
Key Selling Points:
Precise 60-Degree Refracted Angle: Engineered to consistently introduce a 60-degree shear wave into the test material for targeted and effective inspections at a key angle.
Optimized Transducer Contact: The 0.625" x 0.625" contact surface provides a stable and secure interface with compatible transducers, ensuring optimal sound transmission.
Industry-Recognized "Snail" Design: A reliable and commonly referenced wedge style, often meeting the requirements of various industry standards for weld inspection.
Specifically for Shear Wave UT: Intended for use in applications employing shear wave ultrasonic testing techniques, maximizing their effectiveness for angled beam inspections.
Quality Manufacturing by Dakota NDT: Manufactured by a trusted leader in non-destructive testing equipment, ensuring reliability and performance.
Benefits:
Effective Weld Examination at a Key Angle: Ideally suited for detecting common weld imperfections such as side wall fusion, incomplete penetration, and other discontinuities oriented favorably to a 60-degree beam.
Versatile Flaw Detection Capabilities: Suitable for a broad range of materials and inspection scenarios requiring a 60-degree inspection angle, providing complementary information to other angle inspections.
Aids in Code Compliance: Often utilized to meet the specific requirements of various welding codes and industry standards that specify 60-degree inspections.
Delivers Consistent and Repeatable Results: Designed for reliable and repeatable performance when used correctly, providing confidence in inspection outcomes.
Approximate Dimensions (inches):
Transducer Contact Area (L x W): 0.625 inches x 0.625 inches (5/8" x 5/8")
Overall Length: Approximately 1.0 to 1.5 inches (This dimension can vary slightly).
Overall Width: Approximately 0.75 to 1.25 inches (This dimension can vary slightly).
Maximum Height: Approximately 0.5 to 0.75 inches (This dimension can vary slightly).
Refracted Angle: 60 Degrees
Applications:
Critical weld inspection across various industries, often used in conjunction with 45-degree wedges for comprehensive coverage.
Detection of flaws oriented at specific angles within a wide range of materials and components, providing a different acoustic perspective.
Corrosion assessment in specific configurations where a 60-degree angle is advantageous for detection.
General angle beam ultrasonic testing applications requiring a precise 60-degree shear wave introduction.
Quality control processes in manufacturing and fabrication to ensure material integrity and product reliability.
