NM0327304

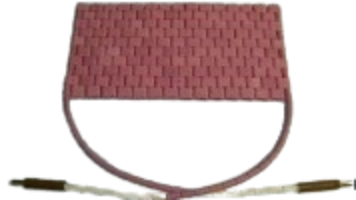

The 60 Volt Ceramic Pad Heater, 8" X 10.5" (CMH52-60) is a flexible and durable heating element designed for various industrial heating applications. Constructed with high-quality materials, this heater provides efficient and uniform heat transfer to a variety of surfaces.

The core of the heater consists of a multi-strand 80/20 Nickel/Chrome resistance wire. This wire is known for its excellent high-temperature performance and is capable of operating up to 2150°F (1176°C). The wire is encased in interlocking sintered alumina ceramic beads. These ceramic beads provide exceptional electrical insulation and contribute to the heater's flexibility, allowing it to conform to curved and irregular surfaces.

The approximate dimensions of this specific model are 8 inches by 10.5 inches, making it suitable for localized heating on pipes, pressure vessels, and other components where a specific area needs to be heated. The "CMH52" designation likely refers to a specific configuration within the manufacturer's product line.

Key Selling Points:

• Flexible Design: Easily conforms to curved and irregular surfaces, ensuring good heat transfer.

• High-Temperature Performance: Capable of operating up to 2150°F (1176°C) for demanding applications.

• Durable Construction: Features a robust 80/20 Nickel/Chrome heating wire and interlocking ceramic beads for long-lasting use.

• Efficient Heat Transfer: The design ensures uniform heat distribution to the target area.

• Specific Size: The 8" x 10.5" dimensions are ideal for localized heating needs.

• 60 Volt Operation: Designed for use with 60V power supplies, a common voltage in heat treating applications.

Benefits:

• Effective Preheating and Post-Weld Heat Treatment: Ideal for stress relieving and ensuring proper metallurgical bonding.

• Versatile Applications: Suitable for heating pipes, pressure vessels, tanks, and other industrial components.

• Improved Efficiency: Direct contact heating and optional insulation (not included) can speed up heating times and conserve energy.

• Reliable Performance: Constructed with high-quality materials for consistent and dependable operation.

Applications:

This 60 Volt Ceramic Pad Heater is commonly used in various industrial heat treating applications, including:

• Preheating materials before welding to reduce thermal stress.

• Post-weld heat treatment (PWHT) for stress relieving welded joints.

• Heating pipes and vessels for various processes.

• Applying heat to irregular surfaces where conventional heating methods are difficult.

• Any application requiring localized and controlled heating up to high temperatures.
